Removing Control Unit For Distance Measuring Sensor
WARNING: This page is about a different variant/trim than selected.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
Information
The distance measuring sensor control unit is integrated into the right ACC sensor and cannot be removed separately.

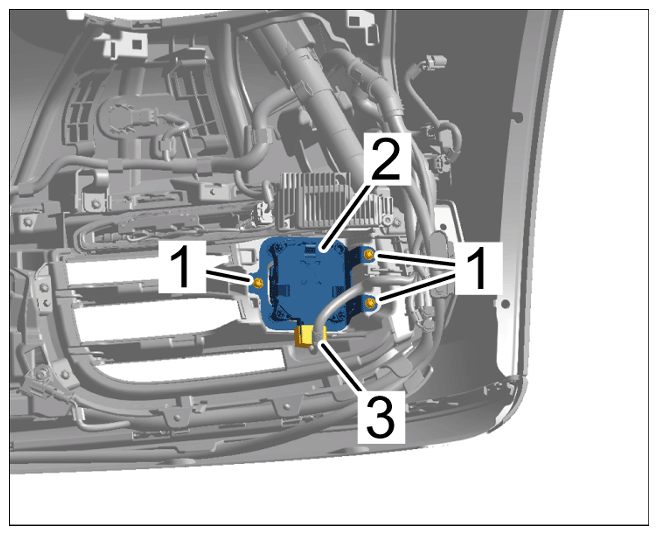

- Remove control unit for distance measuring sensor -2-
.
Removing control unit for distance measuring sensor
- 1.1 Unscrew and remove screws -1-
- 1.2 Loosen control unit for distance measuring sensor -2- until the electric plug connection -3- is accessible.
- 1.3 Release and disconnect electric plug connection -3- .
