Technical Values: Overview
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

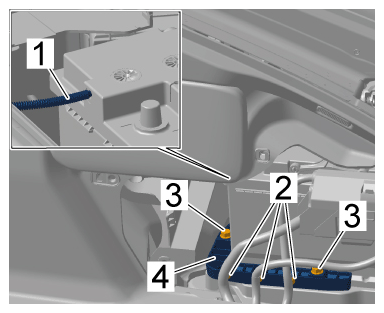

| Fastening screws securing retaining bar to battery rail |
-3- |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Vent hose |
|
|
|
|
|
| Terminal clamp to battery |
-1-, -2- |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

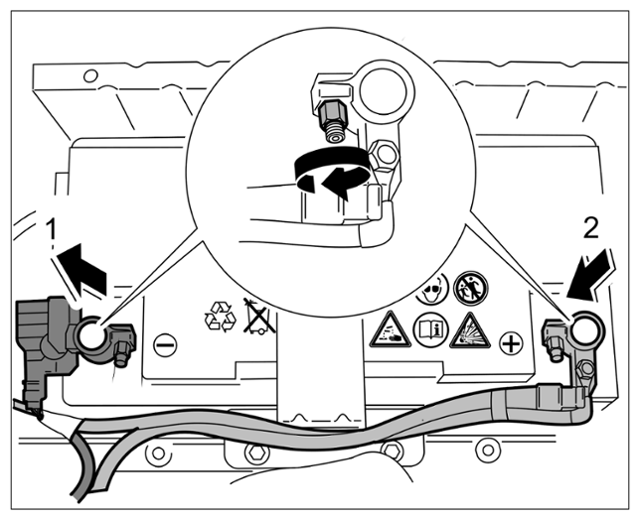

Attaching terminal clamps |
|
|
|
|
|
