Removing Battery

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect vent hose -1-  from the battery.
    G15881122Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vent hose

  2. Unclip line bracket for positive cables -2-  from holder -4-  .
    G15881123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for positive cables

  3. Unscrew screws -3-  and remove holder -4-  .

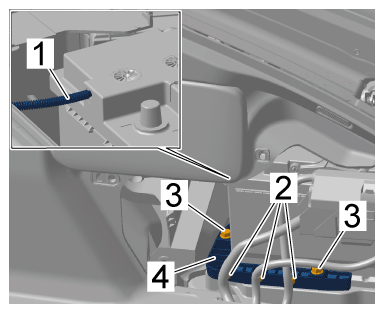

    G15881124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket

  4. Disconnect ground line for battery.

    > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

  5. Guide out battery -1-  (-arrow-  ) until the positive terminal clamp -2-  is accessible.

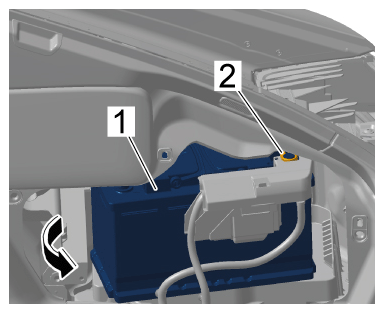

    G15881125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery

  6. Loosen nut and disconnect positive terminal clamp -2-  from the battery -1-  .
  7. Remove battery -1-  .
