Installing Battery Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Connect ground line to body ground point -1-  , align ground line vertically and secure with a fastening nut.
    G15881113Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing ground line

  2. Fit and secure battery sensor with terminal clamp on the battery.
  3. Plug in electric plug connection on battery sensor.

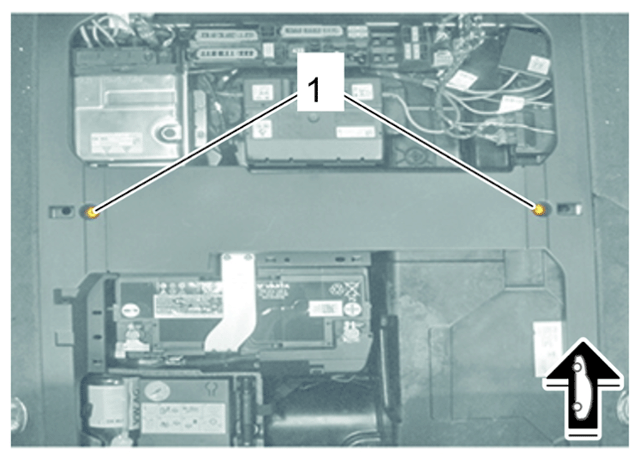

  4. Insert cover strip and secure it -1-  .
    G15881114Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing cover strip
