Removing Centre Retaining Strip And Retaining Strip For Tail Light

Information

The number of electric plug connections can vary, depending on equipment.

Information

The following steps are shown on the left-hand side of the vehicle as an example. The procedure is identical on both sides of the vehicle.

1. Unclip wiring harness.
2. Screw off nuts -1-  on centre retaining strip.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

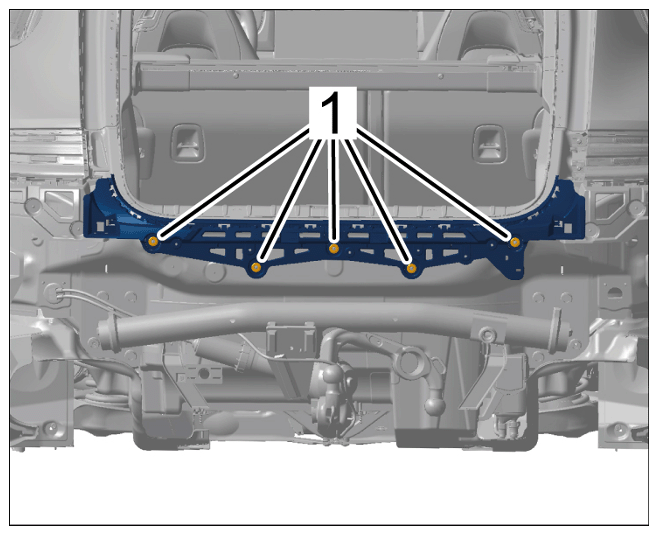

   Detaching centre retaining strip

3. Unclip centre retaining strip from retaining strip for tail light -4-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

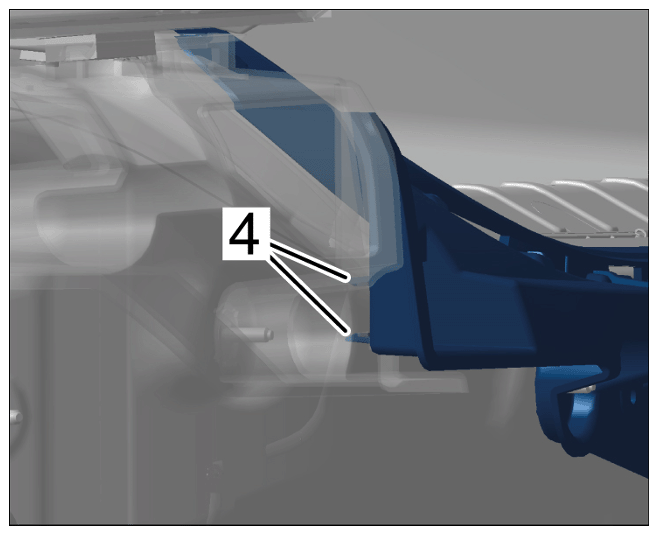

   Removing centre retaining strip

4. Remove centre retaining strip at the bottom > Removing centre retaining strip at the bottom  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

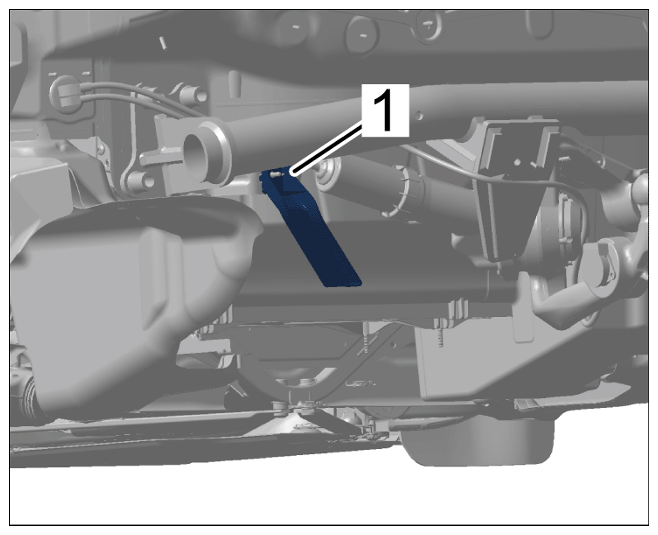

   Removing centre retaining strip at the bottom

   1. 4.1 Screw off nut -1-  .
   2. 4.2 Remove centre retaining strip at the bottom.
5. Remove retaining strip for tail light > Removing retaining strip for tail light  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

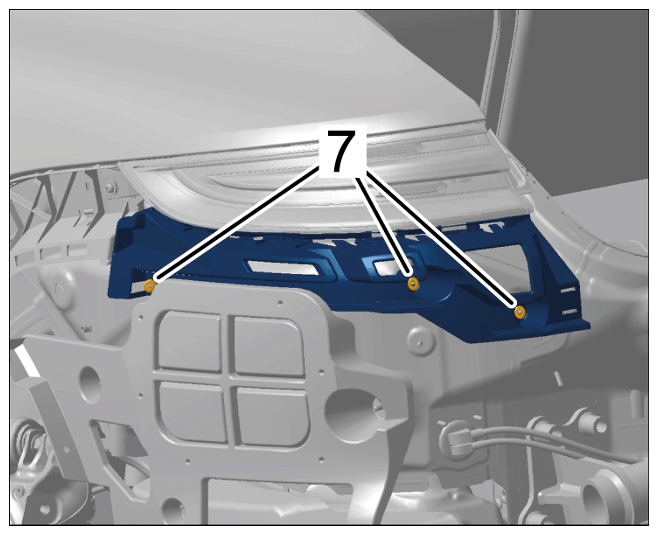

Removing retaining strip for tail light

1. 5.1 Unscrew nuts -7-  on retaining strip for tail light.
2. 5.2 Remove retaining strip for tail light.
