Disassembling Rear Apron

1. Remove wire harness for Park Assist.

   > WM, 975919 REMOVING AND INSTALLING WIRING FOR PARKASSIST

2. Remove sensors for Park Assist.

   > WM, 917519 REMOVING AND INSTALLING PARKASSIST SENSOR

3. Remove rear skirt.

   > 636819 REMOVING AND INSTALLING REAR SKIRT

4. Remove reflector.

   > WM, 943819 REMOVING AND INSTALLING REFLECTOR

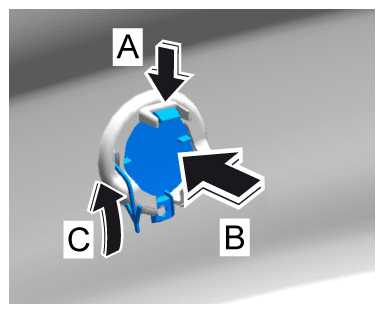

5. Release locking lug -arrow A-  , unclip cover on towing lug -arrow B-  and unhook lock -arrow C-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover on towing lug

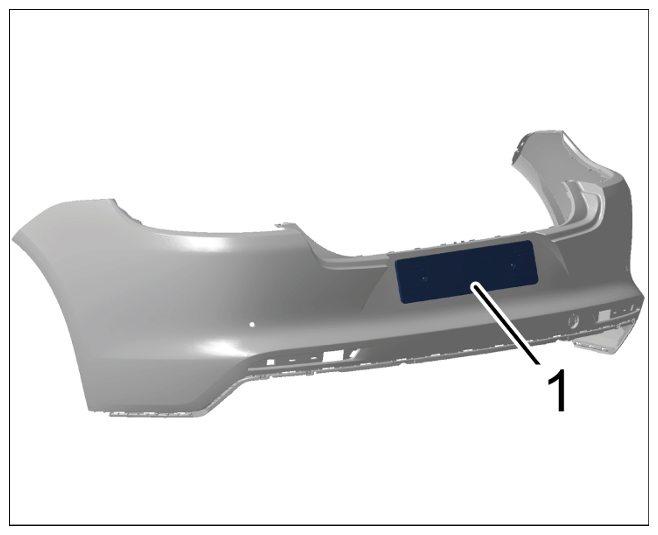

6. Unscrew screws and remove number plate cover -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing number plate cover
