Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...

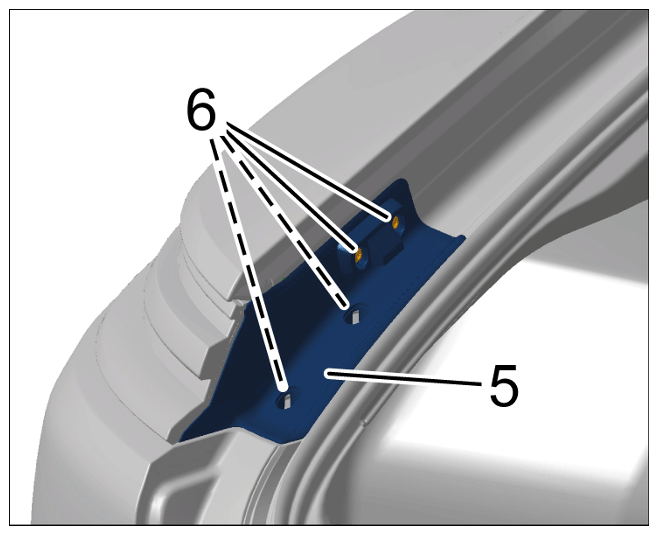

Screws on tail light trim panel	Item 6	Tightening torque	6 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on tail light trim panel

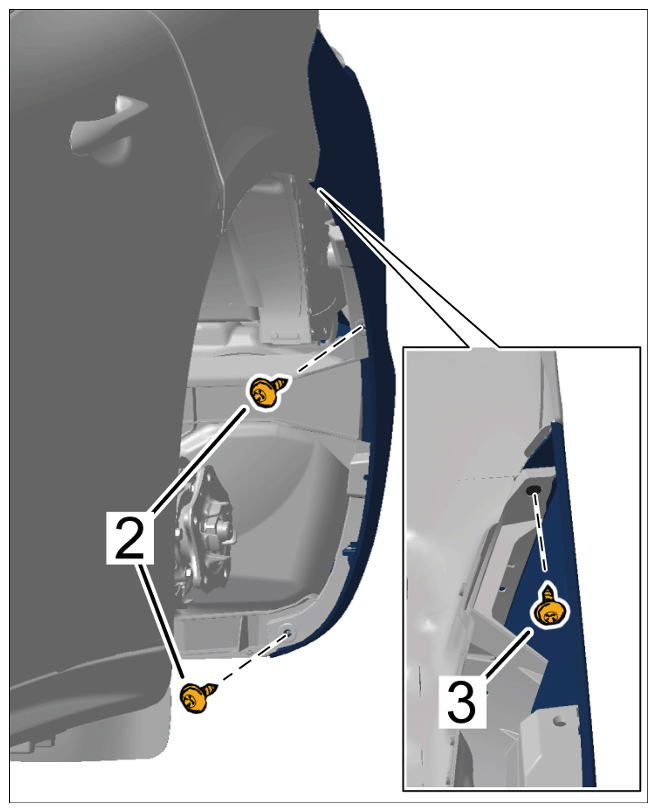

Screws securing rear apron to retaining frame	Item 2	Tightening torque	3 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear apron to retaining frame
Screw securing rear apron to side panel	Item 3 Self-locking screw, must always be replaced	Tightening torque	7 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear apron to side panel

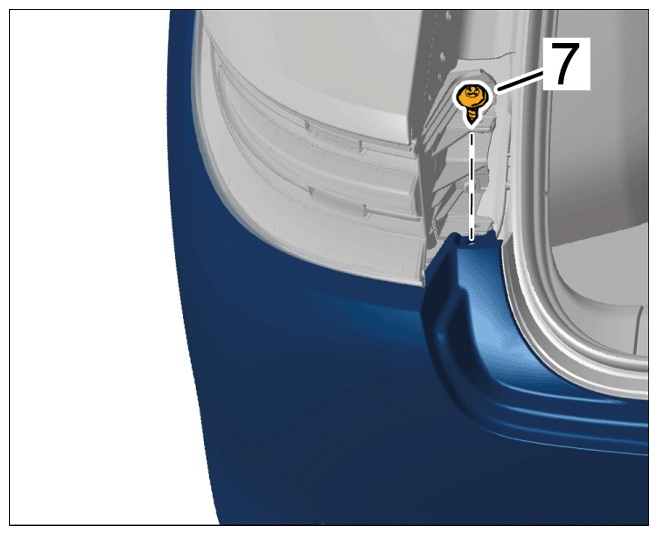

Screw securing rear apron to frame for light	Item 7	Tightening torque	3 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear apron to frame for light
