Assembling Front Apron

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order.

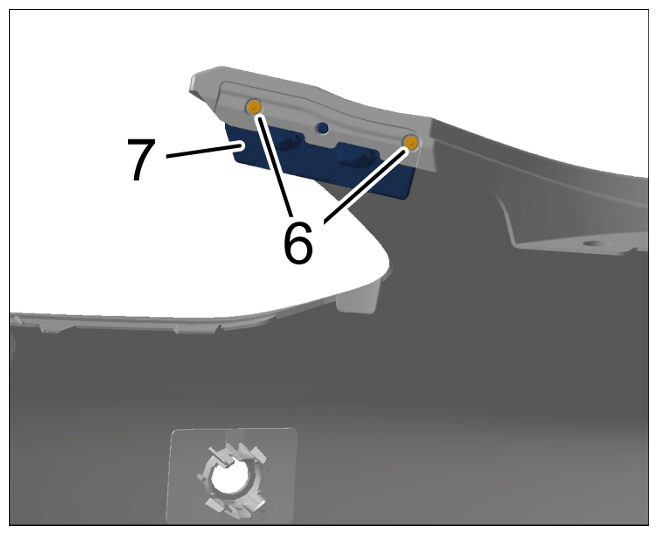

  2. Rivet in holder -7-  in the front apron > BLIND RIVET A3.2 x 17.65 N 912.528.01
    G15865940Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing holder

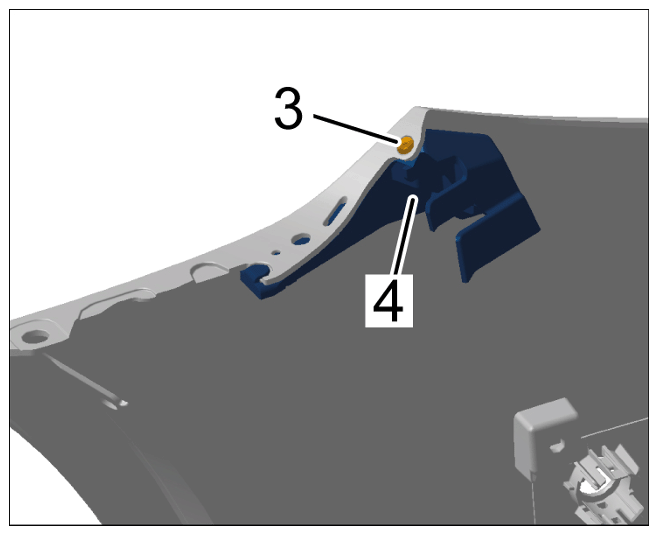

  3. Rivet in holder -4-  > BLIND RIVET A3.2 x 17.65 N 912.528.01
    G15865941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing holder

  4. Only for Panamera Turbo (97A):

    Replace adhesive tape on decorative insert for Park Assist.
