Removing Condenser

WARNING: This page is about a different variant/trim than selected.
WARNING: Refrigerant
  • Danger of freezing

    → Avoid contact with refrigerant.

    → Wear personal protective gear.

    → Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.

    → Observe the safety regulations for extraction and filling systems.

    → Observe the instructions for repairing air-conditioning systems and storing spare parts.

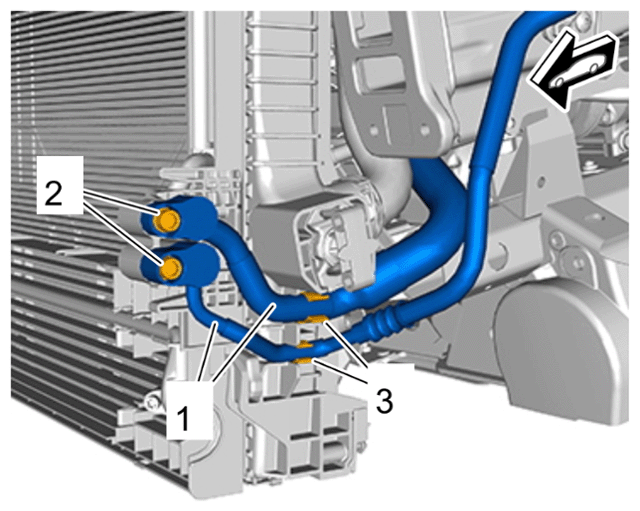

  1. Loosen fastening screws -2-  for refrigerant lines -1-  on the condenser.
    G15875460Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Refrigerant lines on condenser

  2. Pull off refrigerant lines -1-  , unclip them from the side holder -3-  and close off both sides of the connection using suitable stoppers.
    G15875461Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Refrigerant lines on condenser

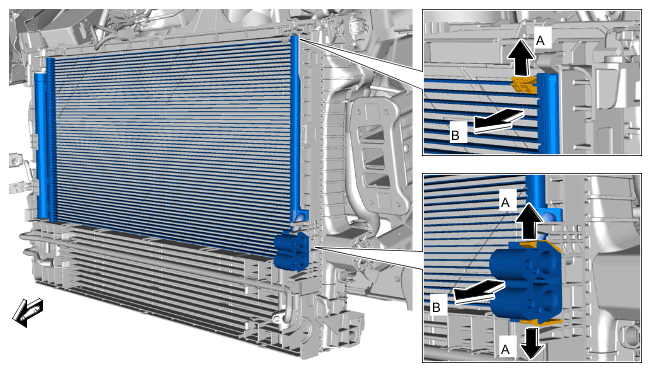

  3. Unclip condenser at the top and bottom left in direction of travel.
    G15875462Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping and clipping in condenser

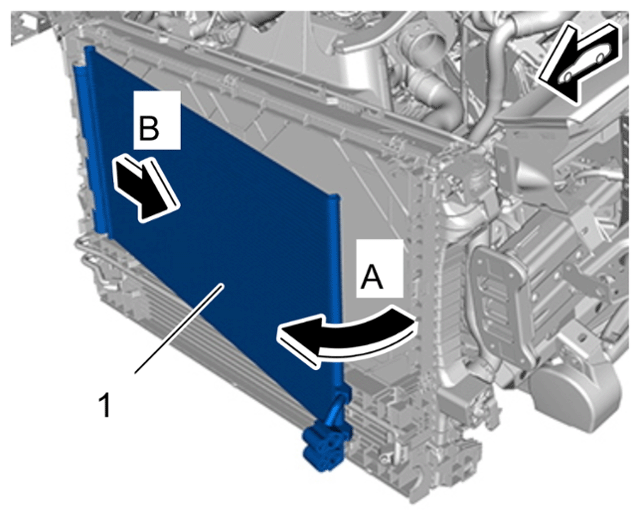

  4. Swivel out condenser at the left in direction of travel -arrow A-  and remove it from the bracket at the right -arrow B-  .
    G15875463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing condenser
