Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Drain refrigerant.
> 870317 DRAINING AND FILLING REFRIGERANT
Remove cowl panel cover.
> WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

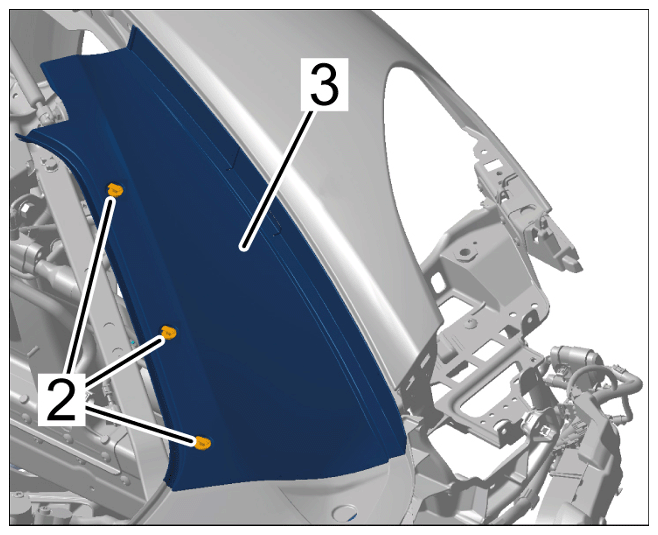

Remove clips -2- and remove engine cover at the left -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side engine cover
Remove front apron.
> 631519 REMOVING AND INSTALLING FRONT APRON
