Removing Air Quality Sensor

WARNING: This page is about a different variant/trim than selected.

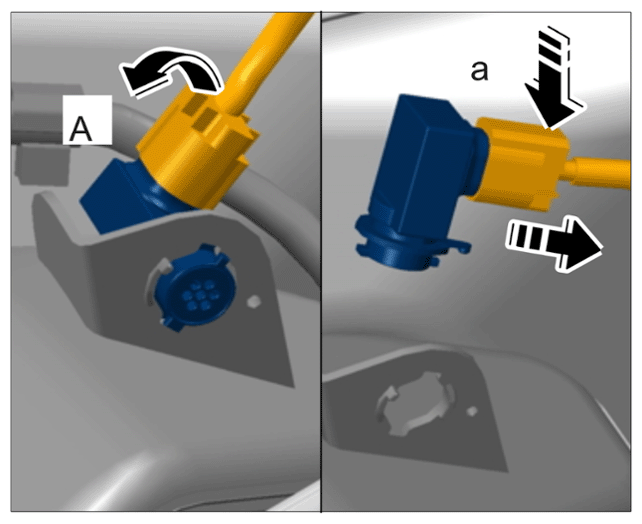

  1. Release the sensor by turning it anti-clockwise -arrow A-  and remove it from the holder.
    G15875423Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air quality sensor

  2. Release electric connector -arrow a-  and remove the sensor.
