Removing Servo Motor For Rear Left Temperature Mixing Flap (4-Zone Air Conditioning)
WARNING: This page is about a different variant/trim than selected.

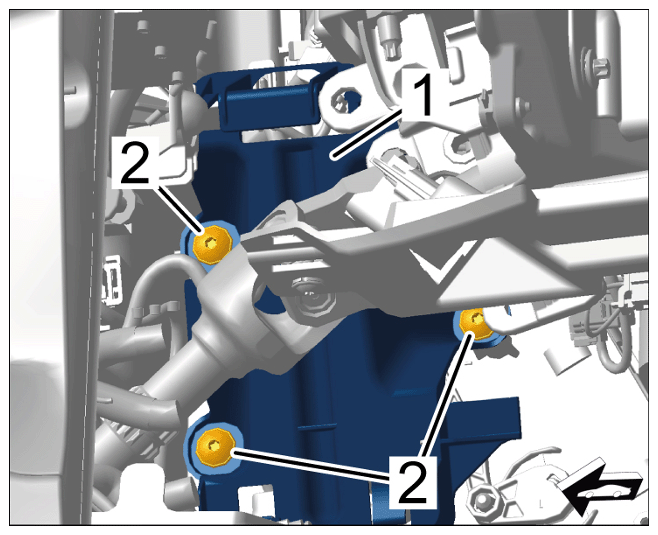

- Unscrew screws -2-
and remove holder -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

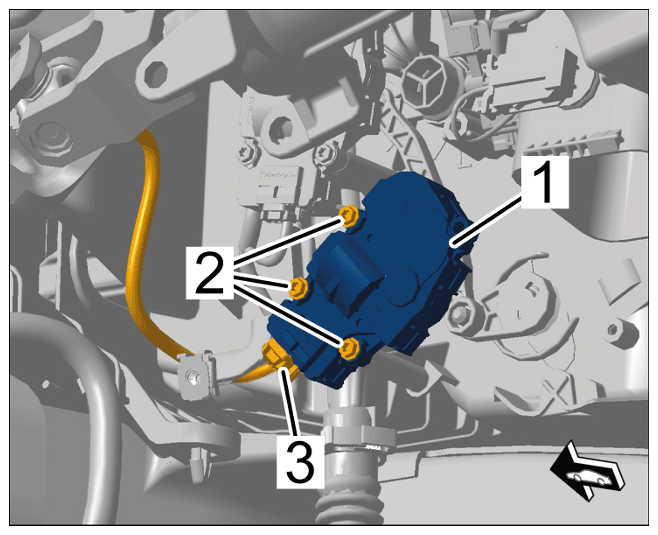

- Remove servo motor for rear left temperature mixing flap -1-
.
- 2.1 Unscrew and remove screws -2-
.
- 2.2 Release and unplug electric plug connection -3-
.
- 2.3 Remove servo motor for rear left temperature mixing flap -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws
