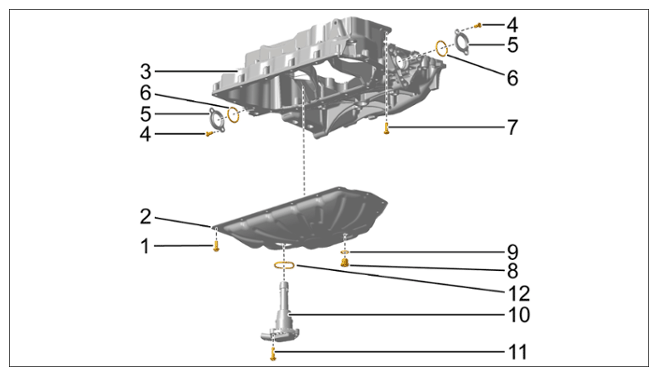

Component overview - oil pan
| 1 | Screw - replace following removal |
| 2 | Oil pan |
| 3 | Oil guide housing |
| 4 | Screw |
| 5 | Oil guide housing cover |
| 6 | O-ring - replace following removal |
| 7 | Screw |
| 8 | Oil drain plug - oil the thread |
| 9 | Sealing ring - replace following removal |
| 10 | Oil level sensor and oil temperature sensor |
| 11 | Screw - replace following removal |
| 12 | Sealing ring - replace following removal |
