Removing Piston Spray Nozzle Control Valve
WARNING: This page is about a different variant/trim than selected.
- Unscrew screw plug -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw plug on piston spray nozzle control valve

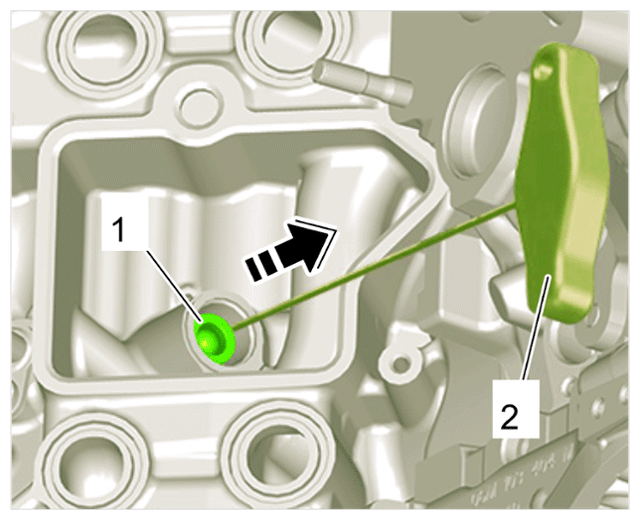

- Pull out piston spray nozzle control valve -1-
using a hook -2-
in -direction of arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Piston spray nozzle control valve
