Removing Oil Level Sensor
WARNING: This page is about a different variant/trim than selected.
- Have a cloth or container ready to collect emerging oil.
- Release and disconnect electric plug connection -1-
on the oil level sensor -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Releasing and pulling off electric plug connection
- Unscrew screws -3-
and pull out oil level sensor -2-
.

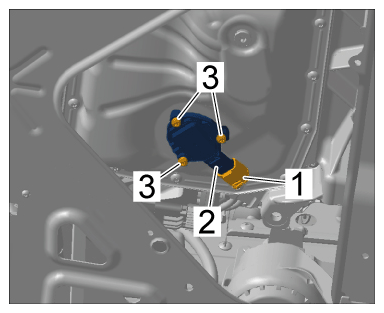

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing oil level sensor
