Removing Oil Temperature Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield -2-  (only for V8 biturbo).
    1. 1.1 Unscrew screws -1-  .
    2. 1.2 Remove heat shield -2-  .
    G15823104Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield

  2. Remove oil temperature sensor -1-  .
    1. 2.1 Release and disconnect electric plug connection -2-  .
    2. 2.2 Unscrew and remove screw -3-  .
    3. 2.3 Remove oil temperature sensor -1-  .

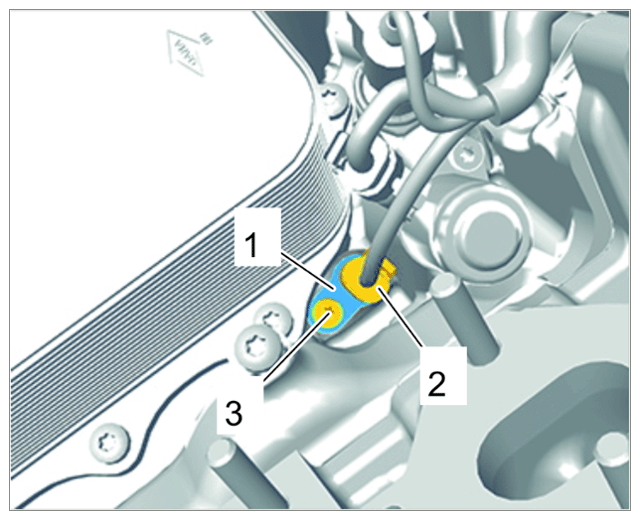

      G15823105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil temperature sensor
