Installing Oil Pressure Switch

1. 1.1 Replace sealing ring on oil pressure switch -2-  .
2. 1.2 Screw in oil pressure switch -2-  and tighten to > Tightening torque 20 Nm (15 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

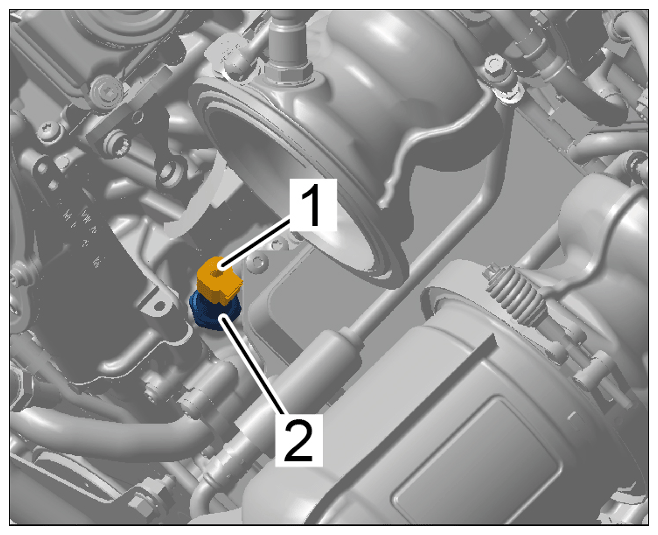

Electric plug connection on oil pressure switch

1. 3.1 Slide heat protection -2-  over electric plug connection on the oil pressure switch.
2. 3.2 Connect and lock electric plug connection -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

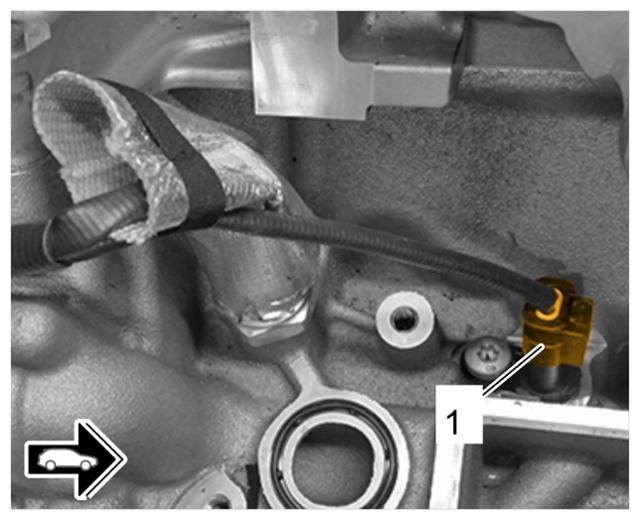

Heat protection on oil pressure switch
