Removing Oil-Pressure Sender

WARNING: This page is about a different variant/trim than selected.

Information

Install new oil-pressure sender as quickly as possible or close off the opening using a suitable stopper to prevent too much engine oil from leaking out.

Have suitable aids ready for collecting escaping engine oil.
Remove oil-pressure sender -1- .
1. 2.1 Release electric plug connection -Arrow A- (-Arrow B- ) and disconnect it.
2. 2.2 Collect escaping engine oil.
3. 2.3 Unscrew oil-pressure sender -1- using > T40363 - socket wrench, a/f 24 .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

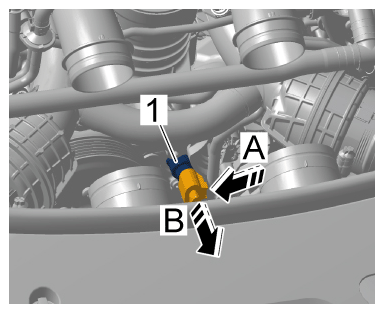

Oil-pressure sender (shown on V6 biturbo)
