Rear Window Guide

Location	Description	Type	Basic value

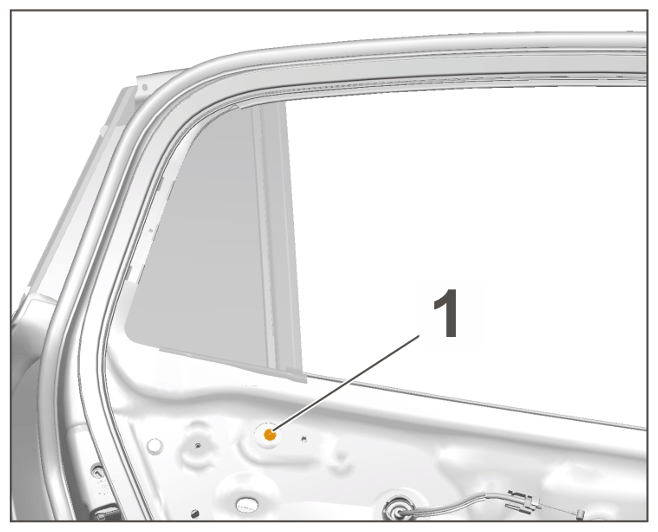

Fastening screw for rear window guide, lower	Item 1	Tightening torque	2.5 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

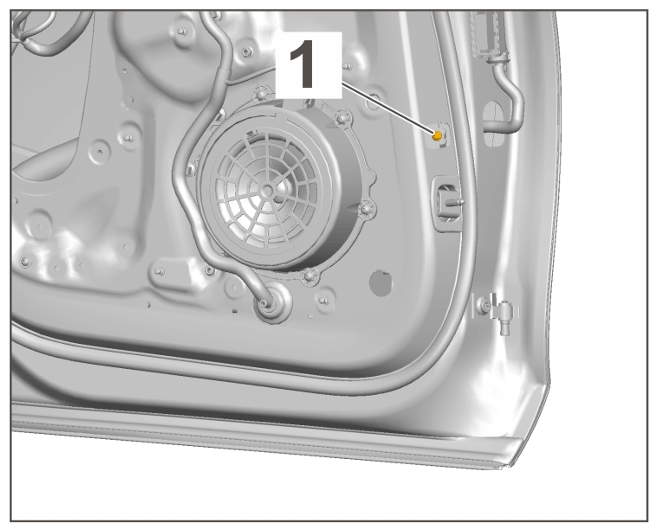

Fastening screws for rear window guide, outer	Item 1	Tightening torque	2.5 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

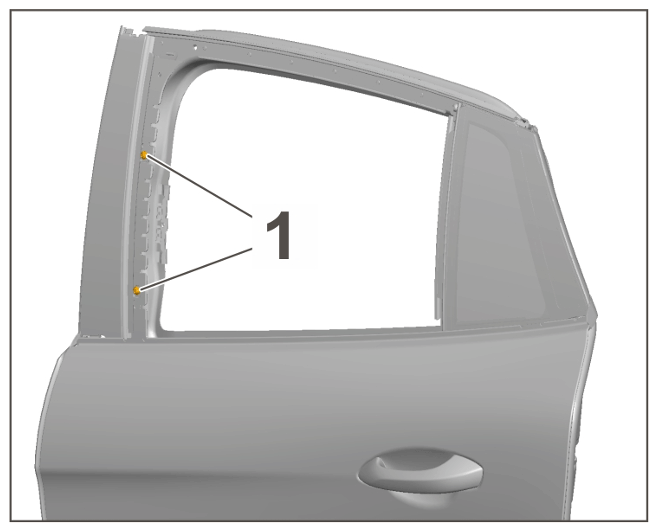

Fastening screw for door window glass (corner piece), outer	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door window (corner piece)

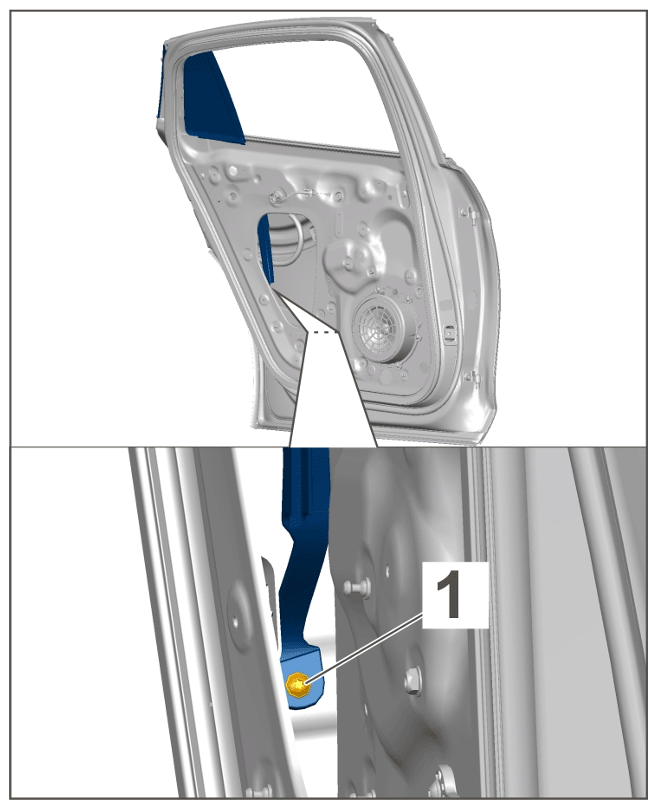

Fastening screw for door window glass (corner piece), inner	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

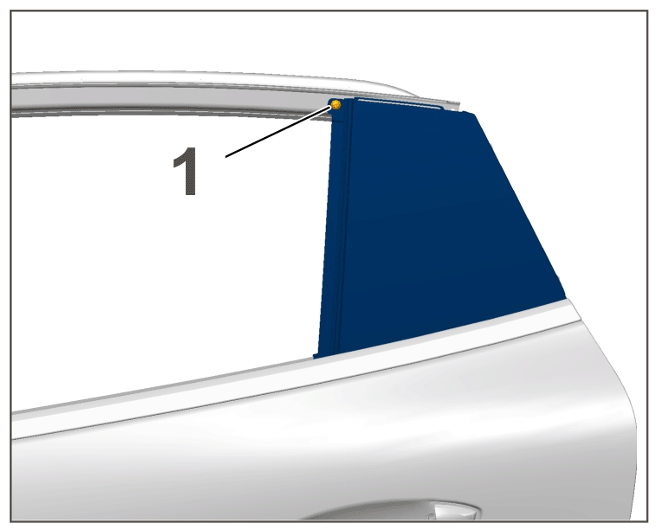

Fastening screw for door window glass (corner piece), inner	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw
