WM, 536855 Replacing Wheel Housing Rear (Inner Section): Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16370802

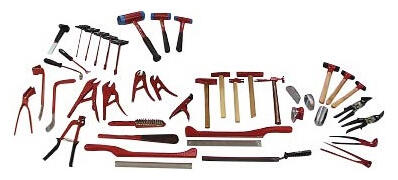

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16370803

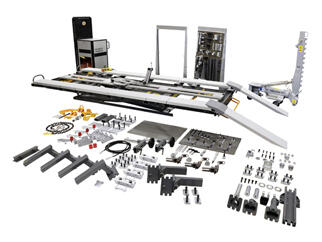

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16370804

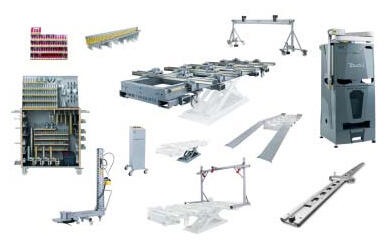

Measuring and straightening system General workshop equipment > VAS 811 017
G16370805

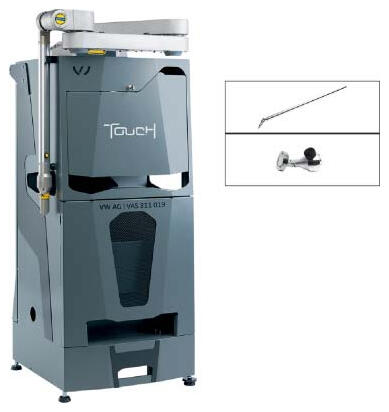

Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16370806

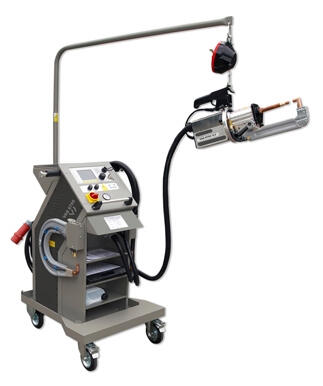

Resistance spot-welding equipment General workshop equipment > VAS 6755
G16370807

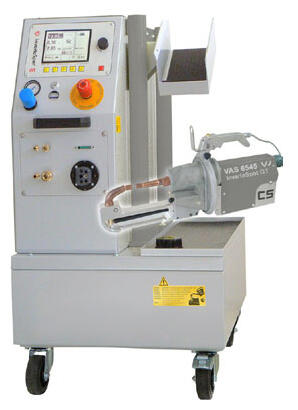

Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16370808

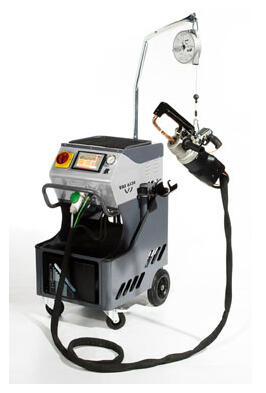

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16370809
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16370810
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16370811

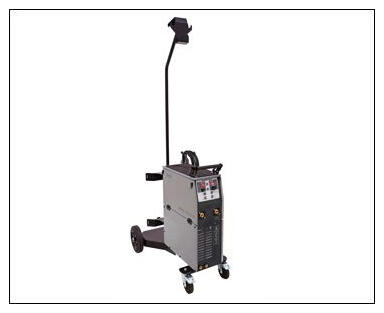

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16370812

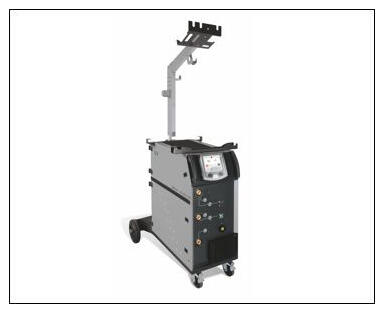

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16370813

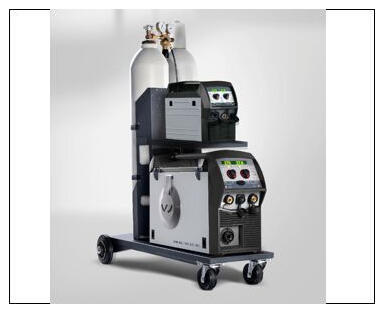

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16370814
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16370815
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16370816
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866

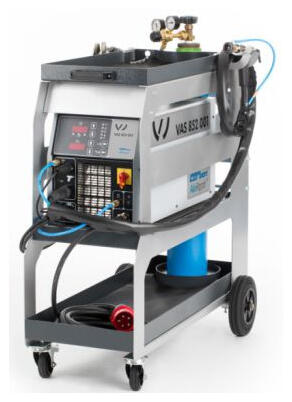

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16370817
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16370818
Extraction system, steel General workshop equipment > VAS 6571/1
G16370819

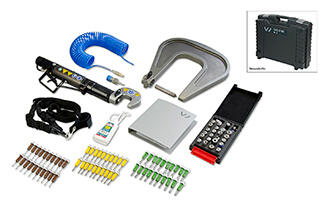

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16370820
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16370821

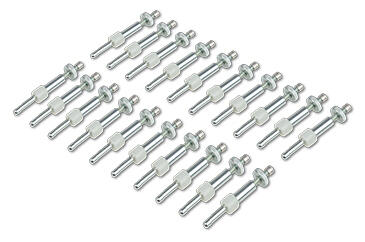

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16370822

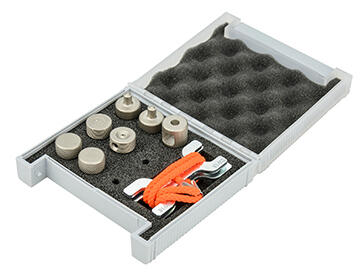

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16370823

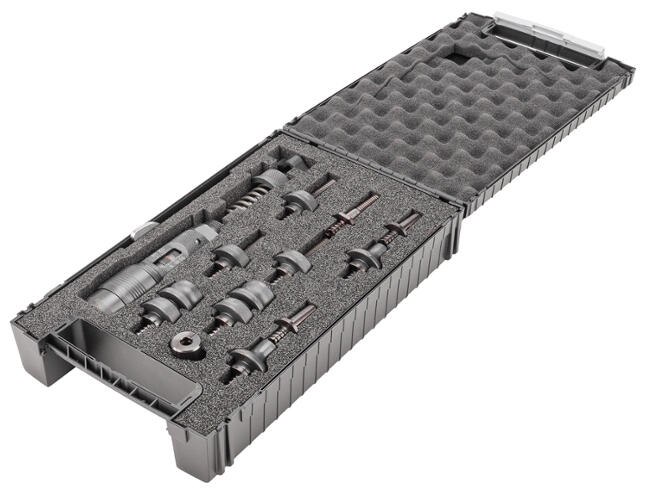

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16370824

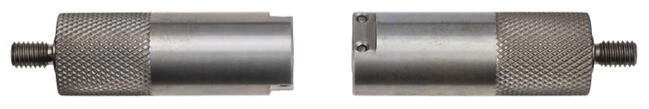

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16370825

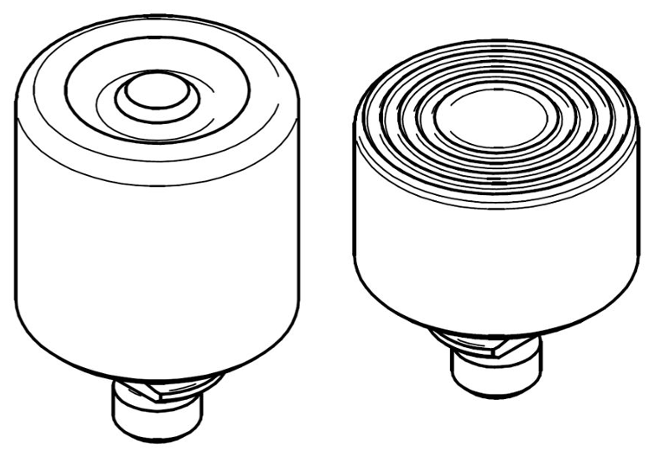

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16370826

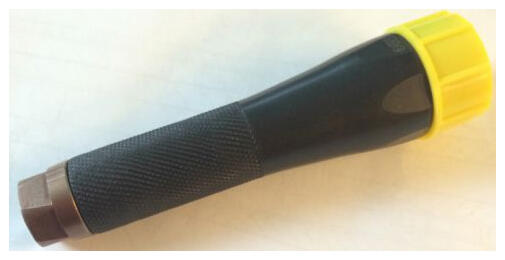

Extension Vehicle-specific workshop equipment > VAS 6792/2
G16370827

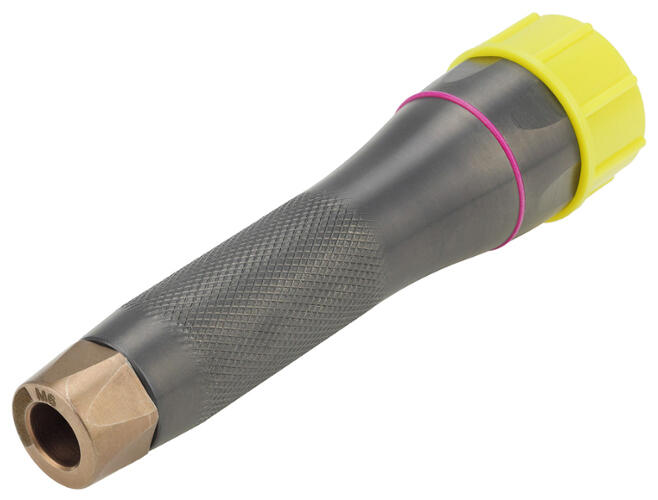

Extension Vehicle-specific workshop equipment > VAS 6792/28
G16370828
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16370829
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16370830
Spot-weld remover General workshop equipment > VAS 882 001
G16370831

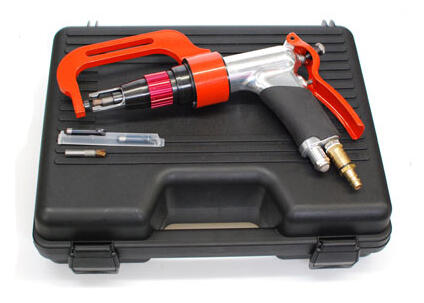

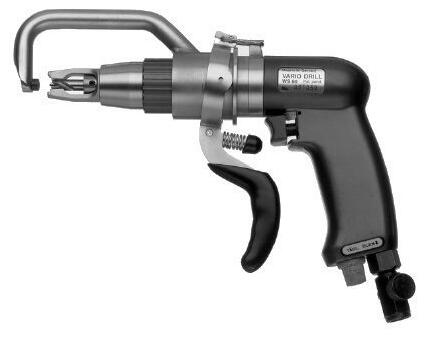

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16370832

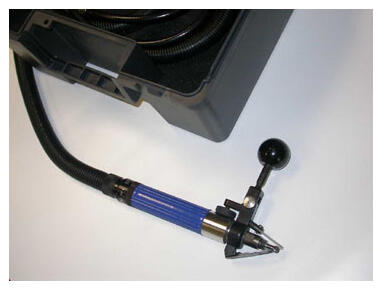

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16370833

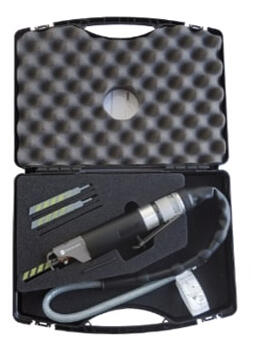

Body saw General workshop equipment > VAS 882 003
G16370834

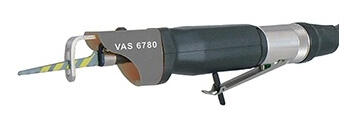

Body saw General workshop equipment > VAS 6780
G16370835
Body saw General workshop equipment > VAS 6598A
G16370836

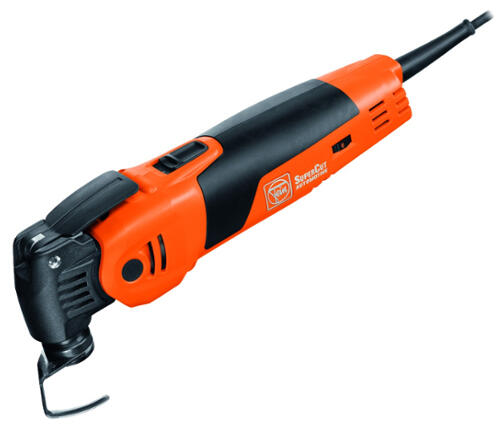

Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16370837
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16370838

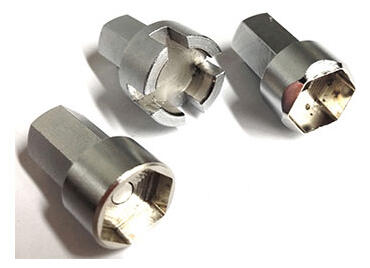

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16370839

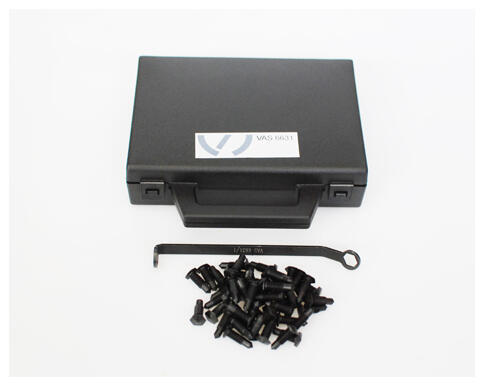

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16370840
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11

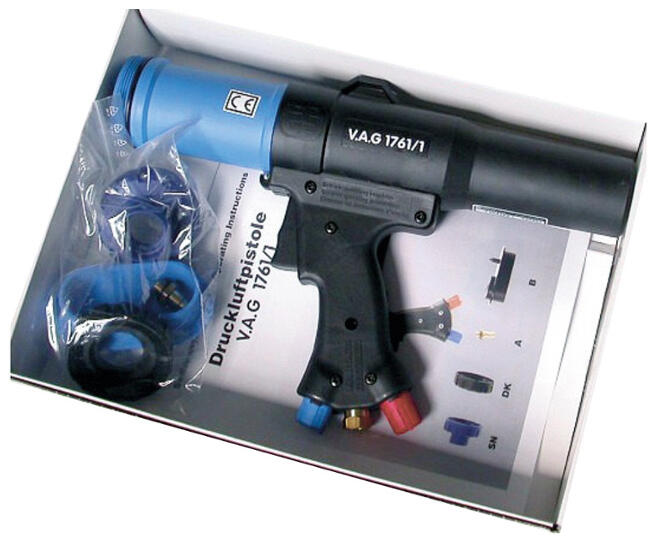

Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16370841

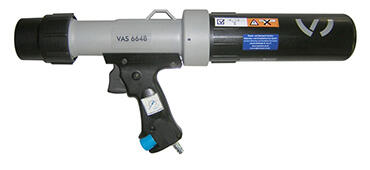

Compressed-air gun General workshop equipment > VAS 6648
G16370842
Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16370843

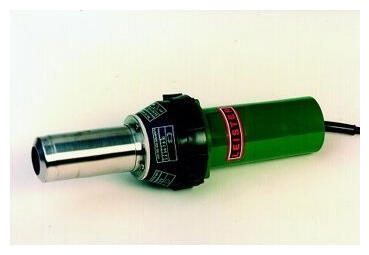

Hot-air blower General workshop equipment > V.A.G 1416
G16370844

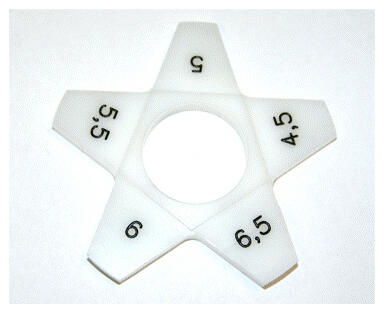

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16370845
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16370846

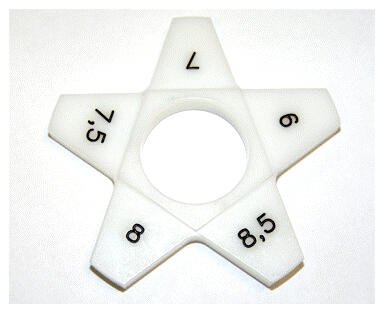

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16370847
