Preparing Connection Areas Of The Body For Installation

  1. Align contact surfaces and connections of the body.
  2. Prepare inner connection areas.

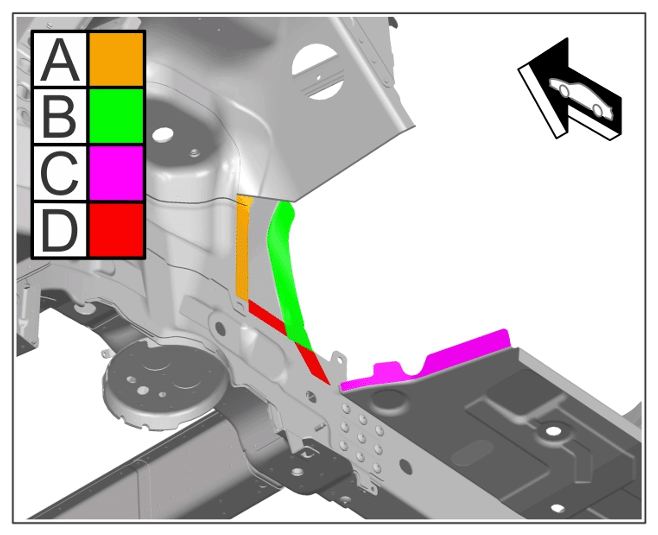

    G16370859

    Inner connection areas

    1. 2.1 Prepare areas -A-  for spot welding
    2. 2.2 Prepare areas -B-  for bonding and resistance spot-welding.

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

    3. 2.3 Prepare areas -C-  for bonding and riveting.

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

    4. 2.4 Prepare areas -D-  for gas-shielded full-seam welding.
  3. Prepare connection areas -B-  for resistance spot welding and bonding.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

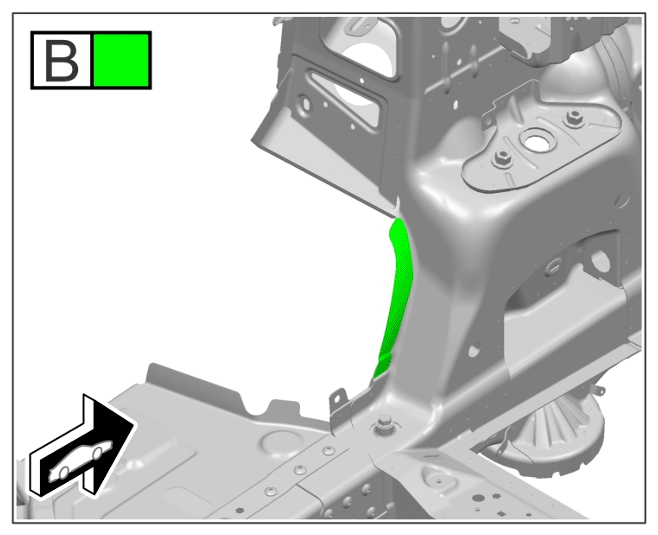

    G16370860

    Outer connection areas
