Installing Rear Cross Member

  1. Apply adhesive on the joint area of the body.

    > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

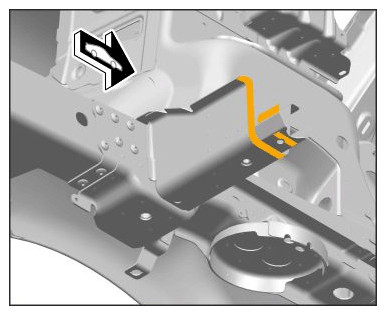

    G16370299

    Apply adhesive

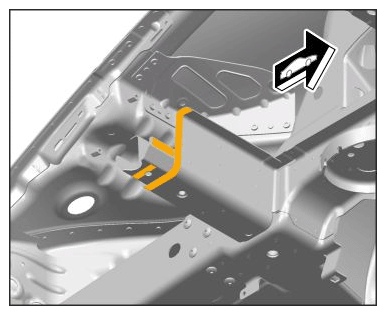

    G16370300

    Apply adhesive

    Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

    1. 1.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  2. Install and resistance spot-weld lower part of cross member.

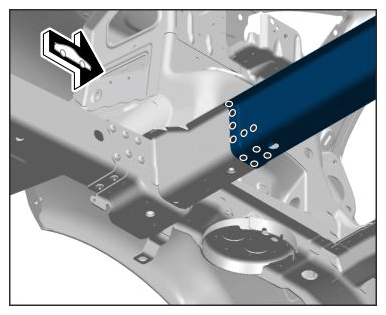

    G16370301

    Resistance spot-welding lower part of cross member

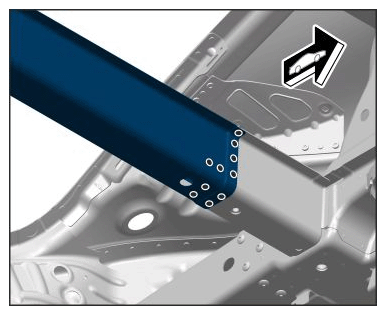

    G16370302

    Resistance spot-welding lower part of cross member

  3. Apply adhesive on the rear cross member.

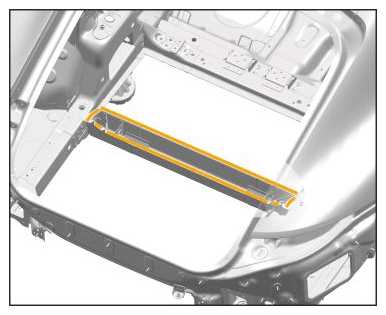

    G16370303

    Apply adhesive

    Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

    1. 3.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
  4. Install and resistance spot-weld lower part of cross member.

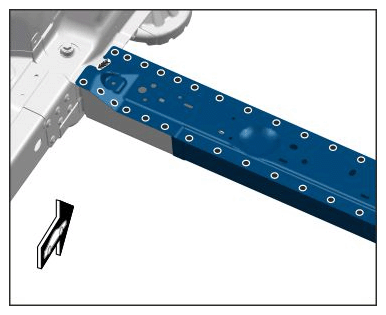

G16370304

Resistance spot-welding upper part of cross member
