Installing C-Pillar Reinforcement

  1. Install C-pillar reinforcement and check that it fits perfectly.

    > 5X00IN GAP DIMENSIONS

    Information

    • Apply adhesive evenly over the entire bonding surface.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  2. Apply adhesive on joint areas -A-  and -B-  of the body.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

    > Application depth 0.5 mm

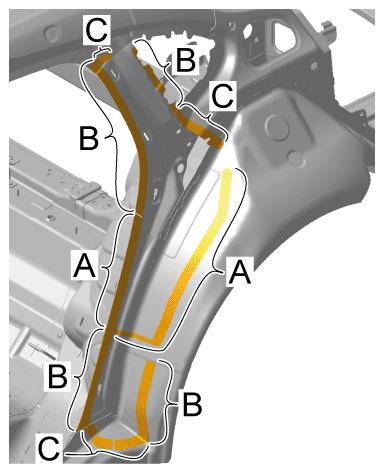

    G16370153

    Bonding areas of the body

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  3. Apply adhesive on C-pillar reinforcement.

    Information

    • Apply adhesive evenly over the entire bonding surface.
    1. 3.1 Apply adhesive in areas -A-  and -B-  on the C-pillar reinforcement. > Application depth 0.5 mm
    2. 3.2 Also apply a bead of adhesive all around the bonding surfaces -A-  and -B-  . > Application depth 3 mm

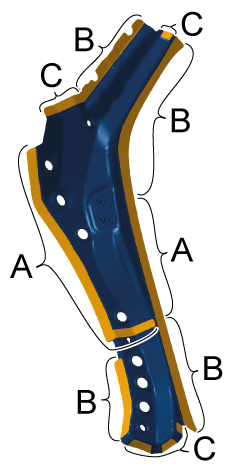

      G16370154

      Bonding areas on C-pillar reinforcement

  4. Rivet in C-pillar reinforcement in area -A-  . > BLIND RIVET 999.190.229.01
    G16370155

    C-pillar reinforcement

  5. Rivet in C-pillar reinforcement in area -B-  . > Flow-form rivet 97A.008.473.00

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

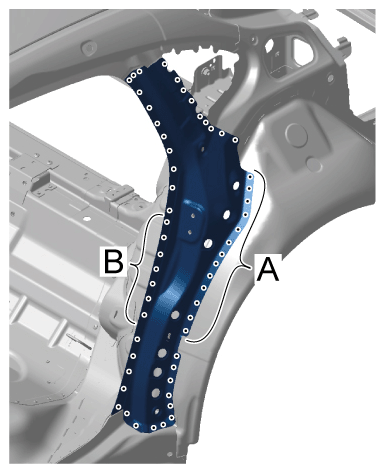

    G16370156

    C-pillar reinforcement

  6. Only for Panamera Saloon

    Resistance spot-weld the C-pillar reinforcement in areas -B-  .

    G16370157

    Resistance spot-welding - Panamera Saloon

  7. Only for Panamera Saloon

    Plug-weld the C-pillar reinforcement in areas -C-  using inert gas.

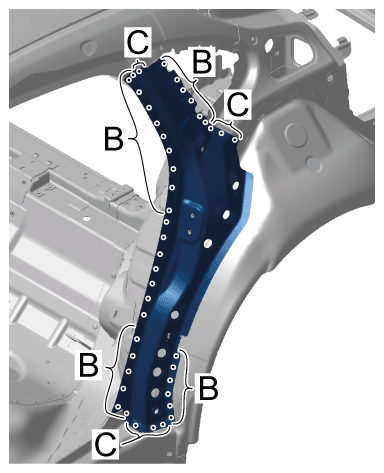

    G16370158

    Plug-welding using inert gas - Panamera Saloon

  8. Only for Panamera Sport Turismo

    Resistance spot-weld the C-pillar reinforcement in areas -A-  .

    G16370159

    Resistance spot-welding - Panamera Sport Turismo

  9. Only for Panamera Sport Turismo

    Plug-weld the C-pillar reinforcement in areas -B-  using inert gas.

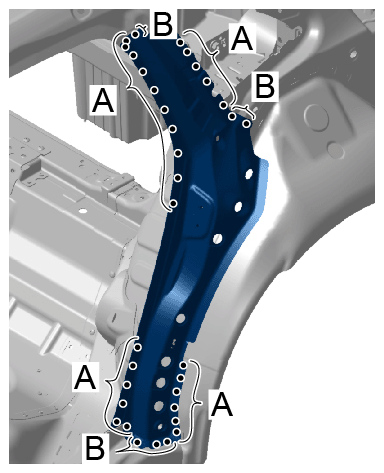

    G16370160

    Plug-welding using inert gas - Panamera Sport Turismo
