Installing Rear Closing Panel (Sport Turismo)
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

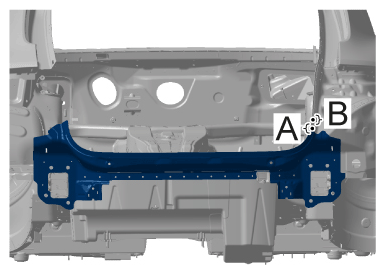

- Install rear closing panel (Sport Turismo) and check that it fits perfectly.

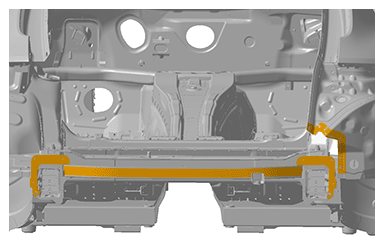

- Apply adhesive on the joint areas of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
Joint areas

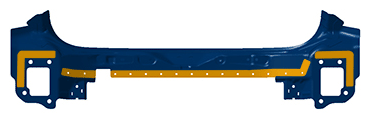

- Apply adhesive on rear closing panel (Sport Turismo).
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

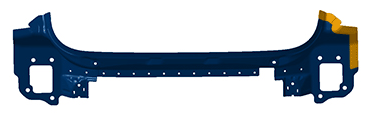

- 3.1 Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
- 3.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
Joint areas
Joint area

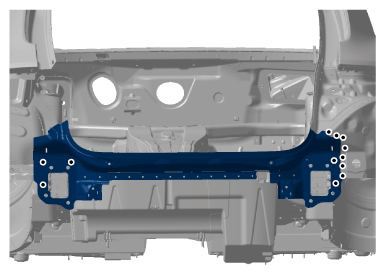

- Set blind rivets. > BLIND RIVETS 999.190.229.01
Blind rivets
- Set flow-form rivets in area -A -
. > FLOW-FORM RIVETS 9A7.008.473.00
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Flow-form rivets
- Set flow-form rivets in area -B -
. > FLOW-FORM RIVETS 9A7.008.607.00
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Flow-form rivets
