Installing Closing Cross Member (Sport Turismo)

1. Install closing cross member (Sport Turismo) and check that it fits perfectly.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.

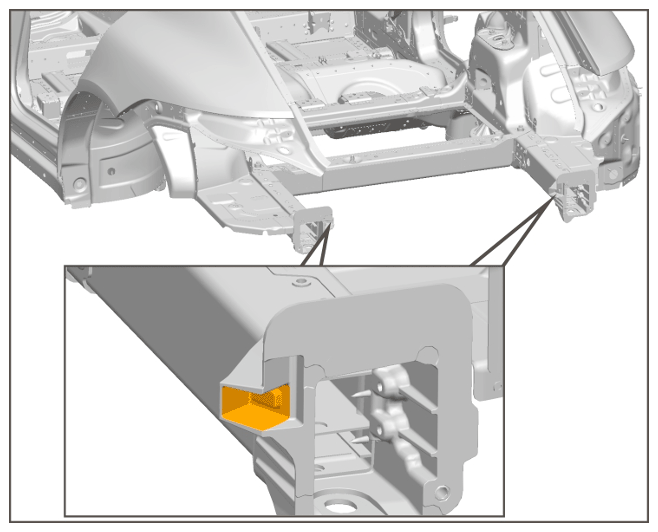

2. Apply adhesive on the joint area of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Adhesive

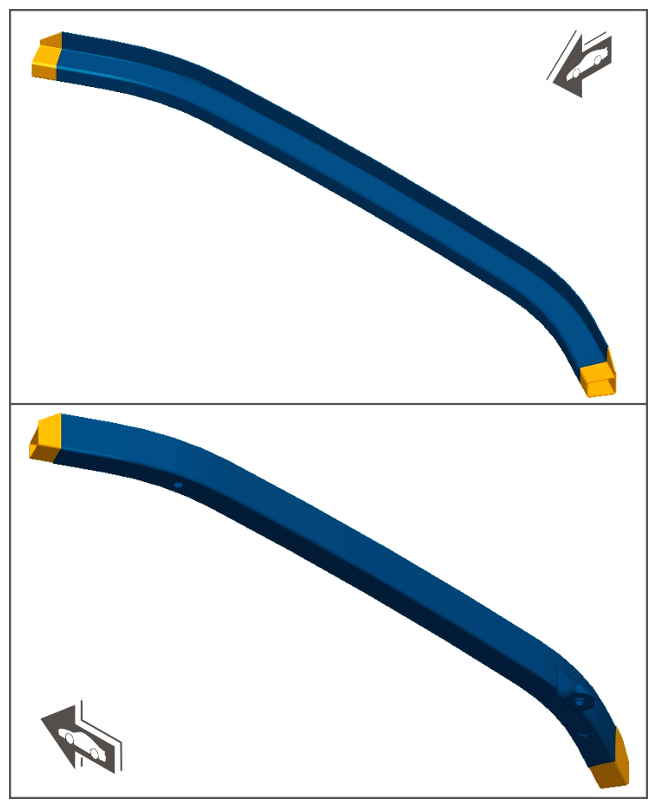

3. Apply adhesive on closing cross member (Sport Turismo).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   1. 3.1 Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
   2. 3.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm

   Adhesive

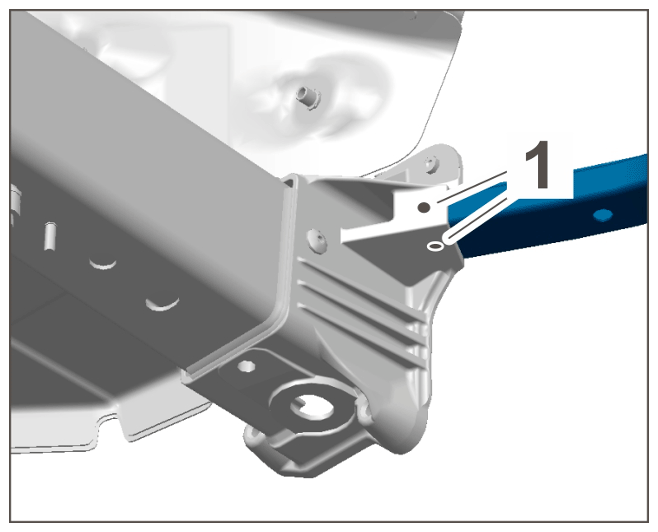

4. Rivet in closing cross member (Sport Turismo) -1-  . > COUNTERSUNK RIVETS 999.190.228.01

Closing cross member (Sport Turismo)
