Home >> Porsche >> 2023 >> Panamera Base >> Repair and Diagnosis >> Body & Frame >> Windows >> 64 Glazing, Window Operation - Coupe -- 971 - PANAMERA (971) >> WM, 647119 Removing And Installing Rear Power Windows >> Technical Values

Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Fastening nut securing front power windows mechanism to basic door frame Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)

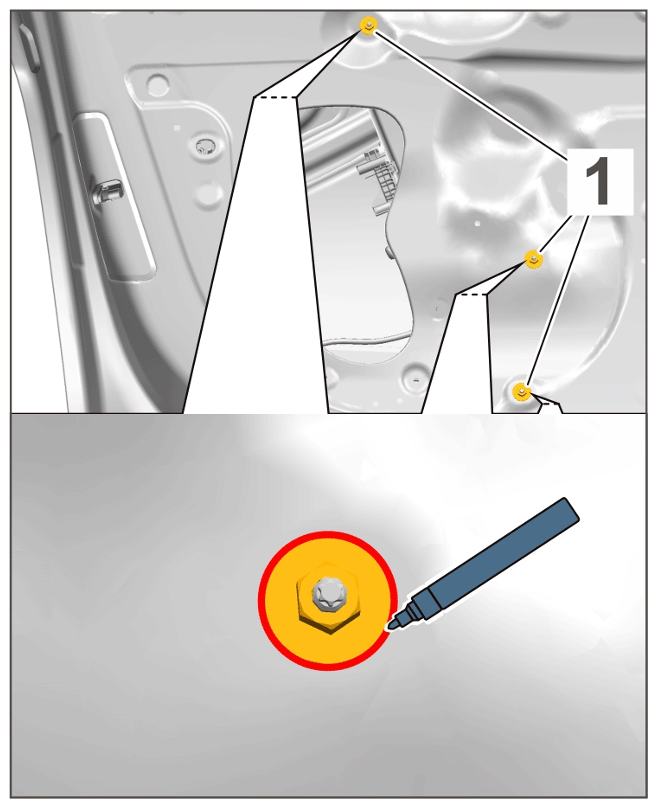

G15864813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
