Removing Rear Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

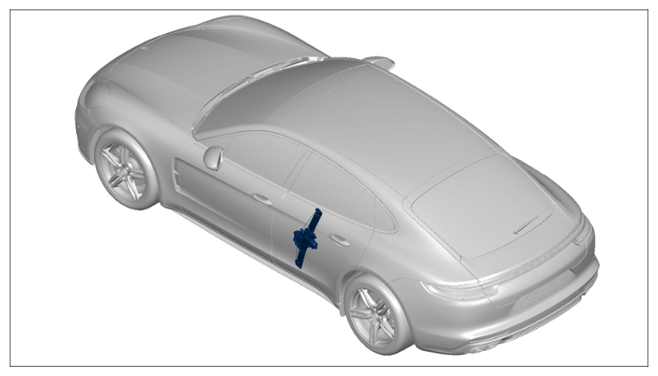

Installation position of rear power windows

Information

The adhesive pad cannot be pulled off without damaging it and must always be replaced.

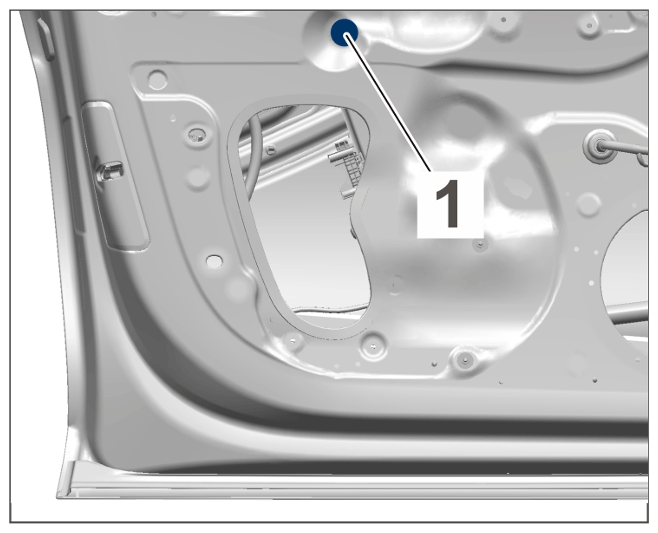

1. Pull off adhesive pad -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive pad

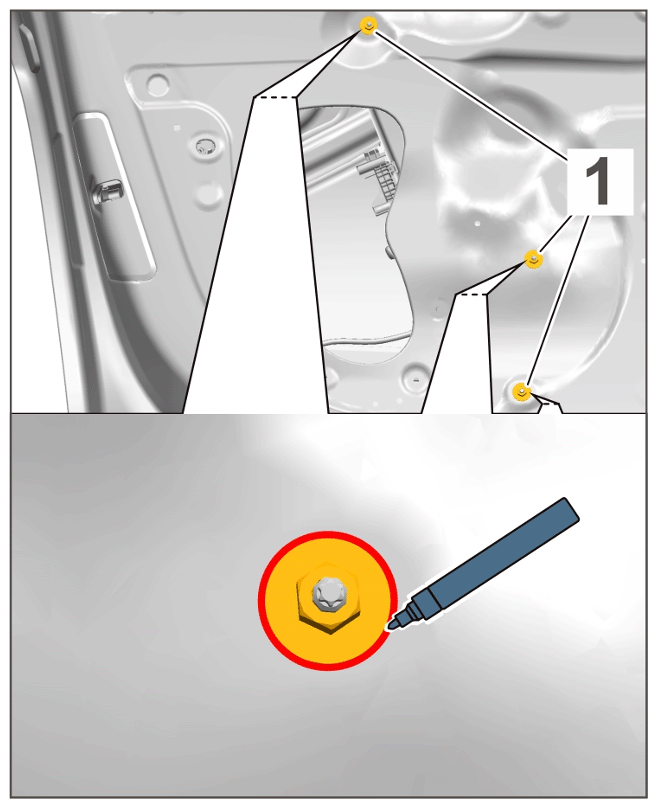

2. Mark position of fastening nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

3. Unscrew fastening nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

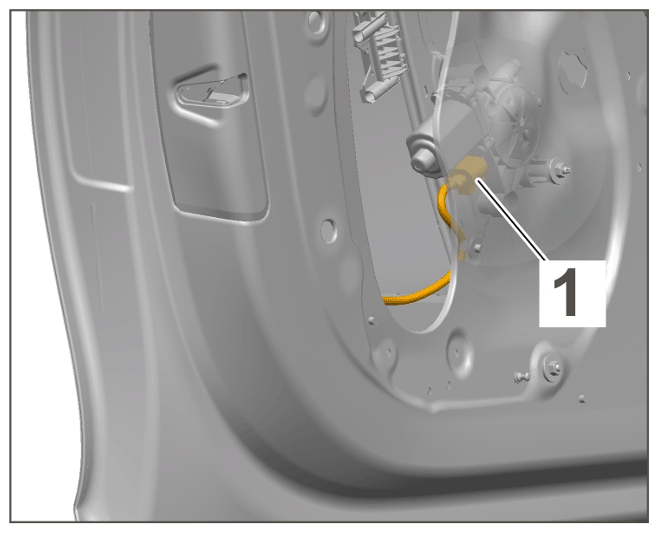

4. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

5. Remove rear power windows mechanism.
