Removing Switch For Power Windows (Rear Door)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

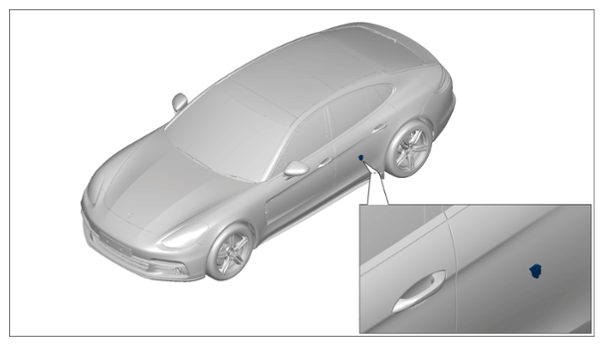

Installation position of switch for power windows (rear door)

1. Release and disconnect electric plug connection for ambient lighting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

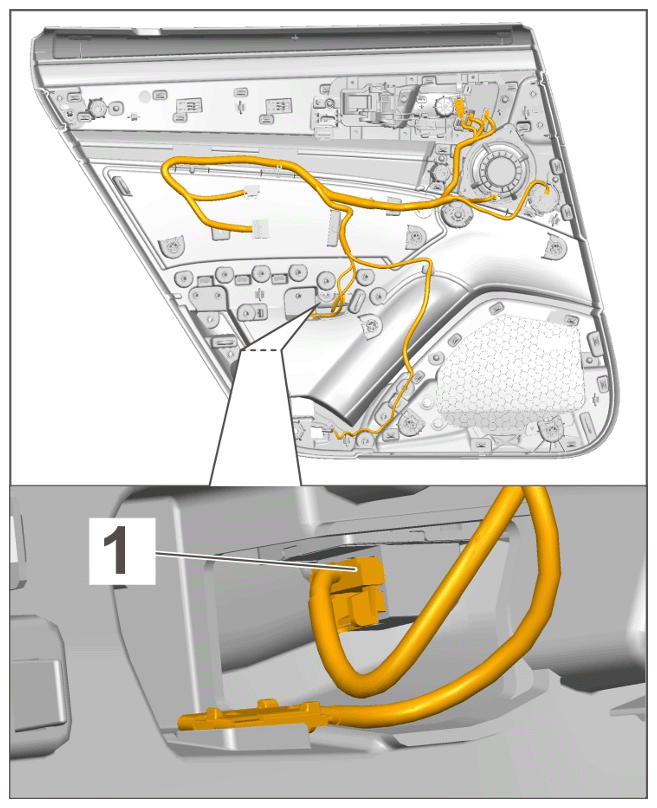

   Ambient lighting in storage compartment

2. Release and disconnect electric plug connections for switch for power windows (rear door) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

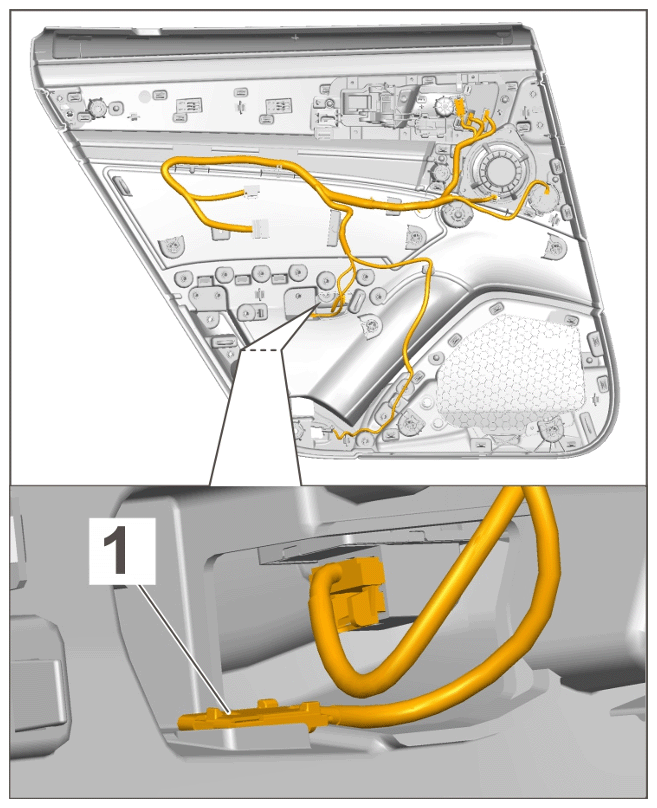

   Switch for power windows (rear door)

3. Unclip switch for power windows (rear door) in an upward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

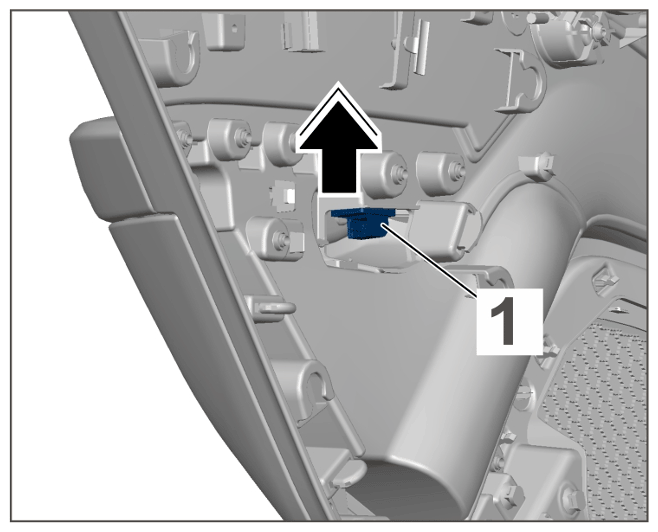

Switch for power windows (rear door)
