Removing Switch For Power Windows (Front Door)

Information

• The front locking lug can be accessed through the bore  .
• Only make the bore hole as deep as required so as not to damage the locking lug  .

Information

Lightly press switch for power windows (front door) -1-  up through the opening -2-  during the entire loosening process -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

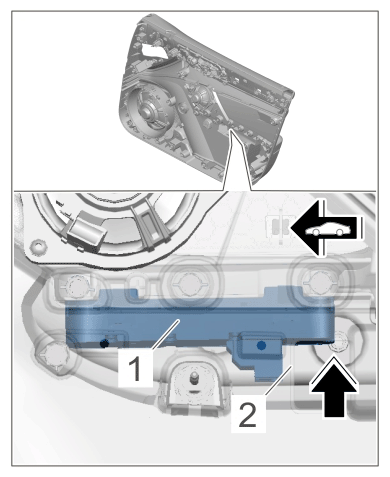

Switch for power windows (front door)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

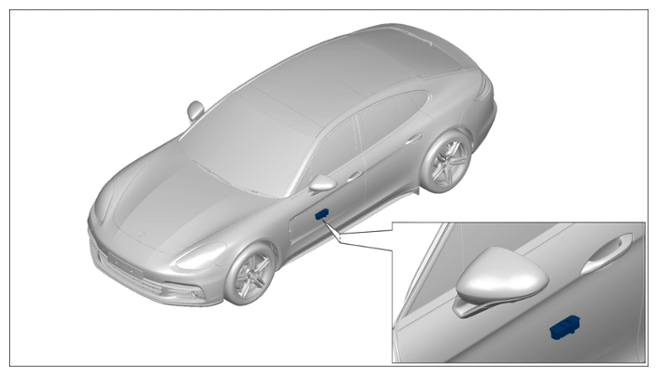

Installation position of switch for power windows (front door)

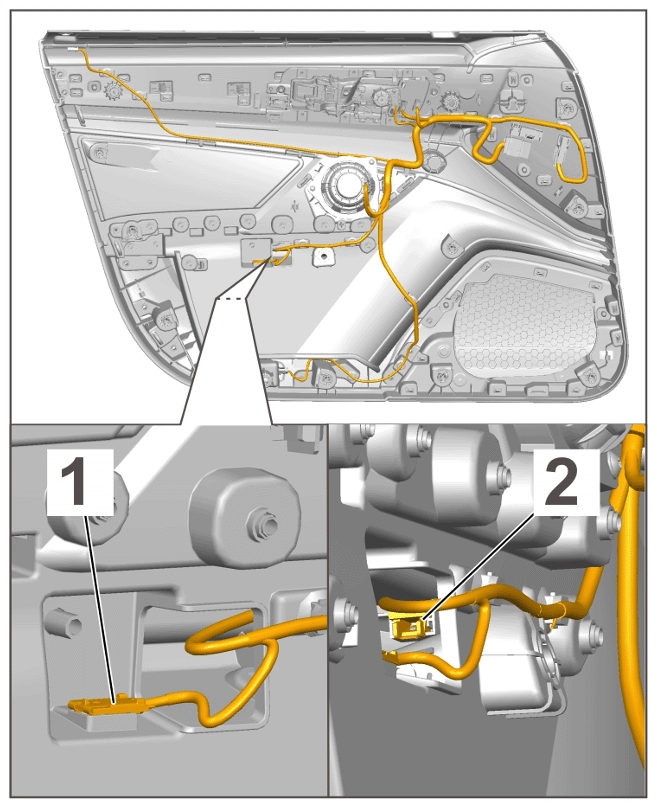

1. Release and disconnect electric plug connection for ambient lighting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ambient lighting in storage compartment

2. Remove electric plug connection for switch for power windows (front door) -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Switch for power windows (front door)

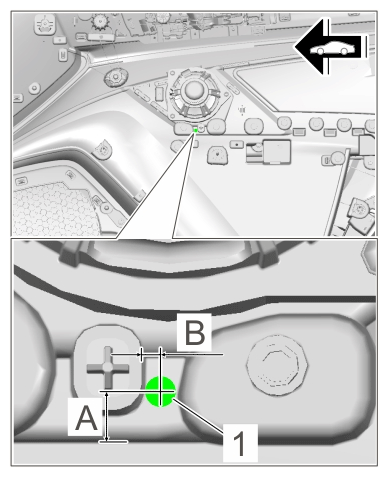

3. Make bore hole -1-  in door panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bore in door panel

   1	> Diameter 5 mm
   A	> Length 9 mm
   B	> Length 3.1 mm

4. Detach switch for power windows (front door).

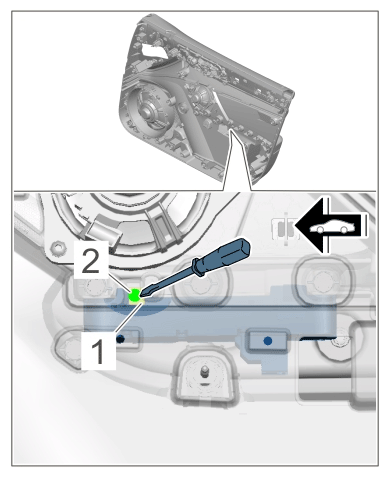

   1. 4.1 Disengage locking lug -1-  through the bore hole -2-  using a screwdriver.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Locking lug

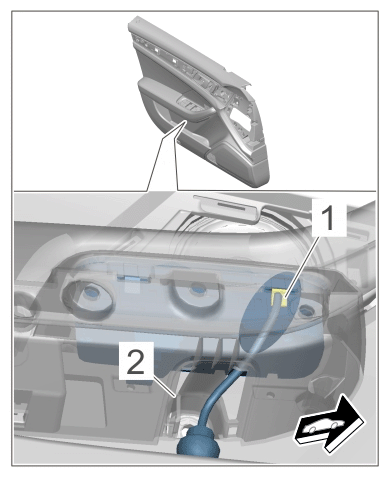

   2. 4.2 Disengage locking lug -1-  through the opening on the component -2-  using > 9893 - disassembly tool  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Locking lug

   3. 4.3 Turn the door panel around.

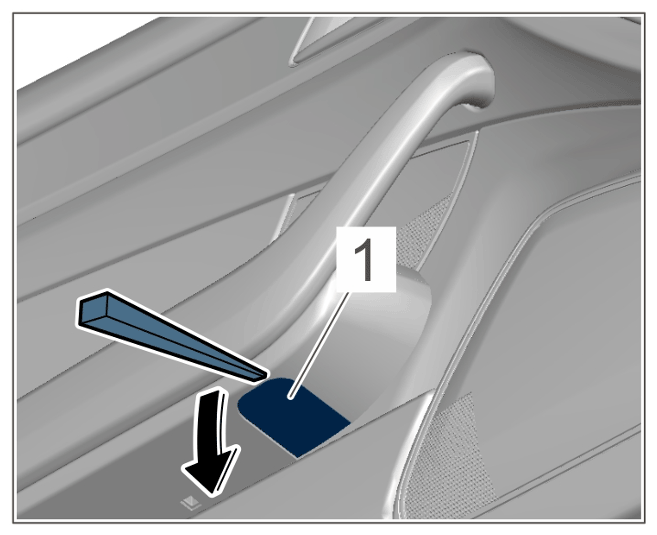

   4. 4.4 Unclip cap -1-  using an assembly wedge. -arrow-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cap

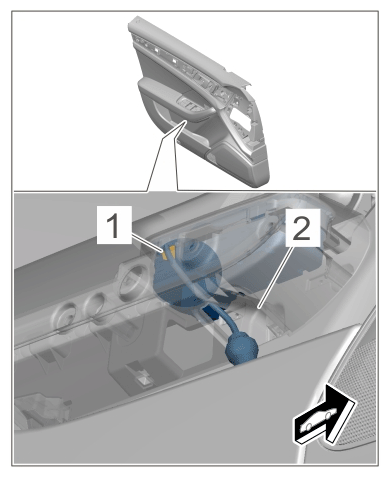

   5. 4.5 Disengage locking lug -1-  through the opening on the component -2-  using > 9893 - disassembly tool  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Locking lug

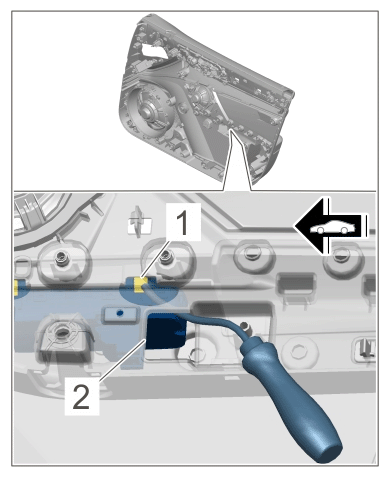

   6. 4.6 Disengage locking lug -1-  through the opening on the component -2-  using > 9893 - disassembly tool  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lug

5. Remove switch for power windows (front door).
6. Unclip switch for power windows (front door) using > 9893 - disassembly tool  . ADD ANIMATION CROSS-REFERENCE HERE  .
