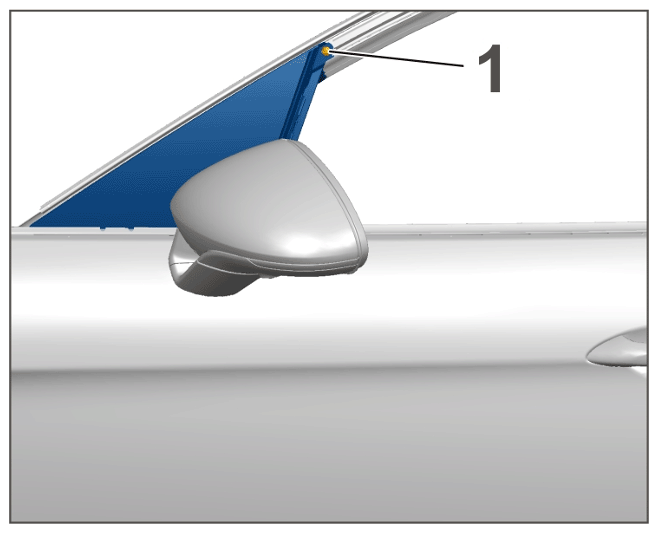

| Fastening screw for front corner window pane, outer |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Outer fastening screw |

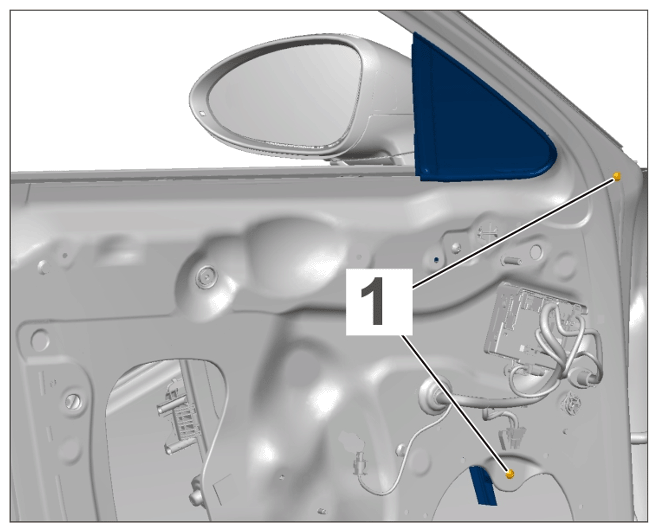

| Fastening screws for front corner window pane, inner |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inner fastening screws |
