WM, 5X00IN23 Replacing Punch Rivets And Penetrated Joints
>>
Releasing Joint Connections
>>
Punch Rivets
Punch Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

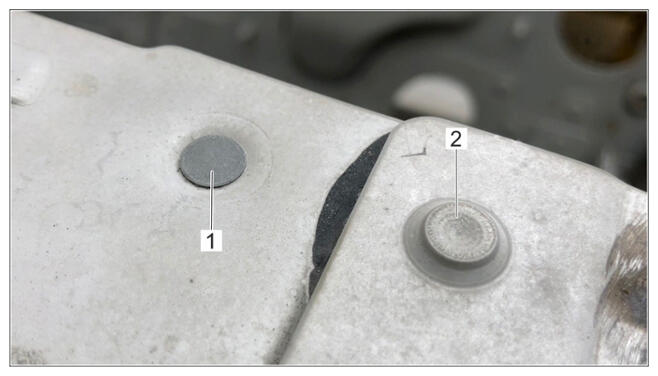

Punch rivets
1
Punch rivets - head side
2
Punch rivets - die side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
