Welding Studs
- Risk of electric shock or burns
→ Wear personal protective gear.
→ Disconnect both battery terminals.
→ Do not weld in a damp area or when it is wet under foot.
→ Move highly inflammable materials out of the work area. Vertilate the work area well.
→ Remove smoke gases with an extraction system.
→ Read specific safety information for the welder.
→ Check that welder is working perfectly before use.

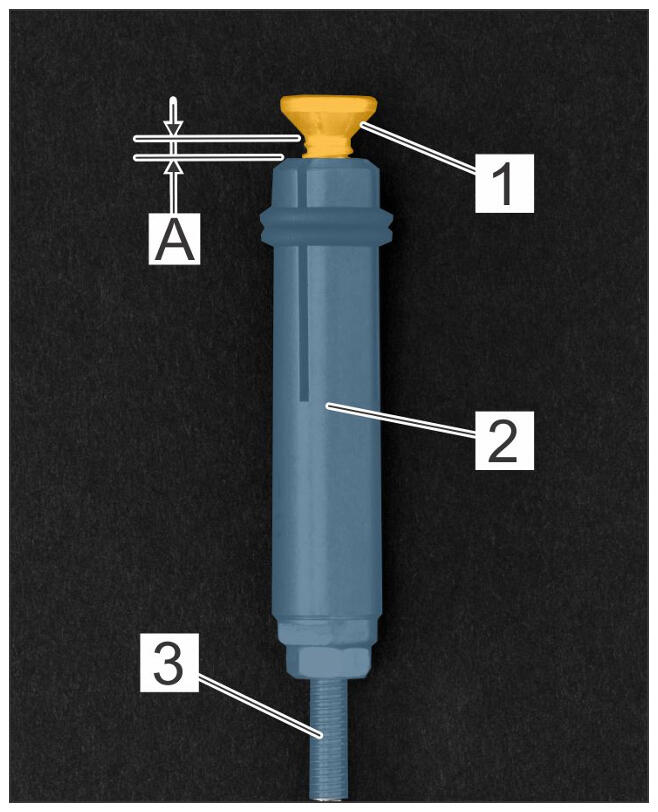

- Insert weld stud -1-
with a head distance from > Length 2 mm
into the receiver -2-
.
Inserting weld studs
- Screw in anchor block -3-
as far as the weld stud and secure it in order to hold the weld stud in position.
Holding weld stud in position
Information
The welding process can only be started if the welding current circuit is closed. For this purpose, there must be electric contact between the welding element and workpiece.

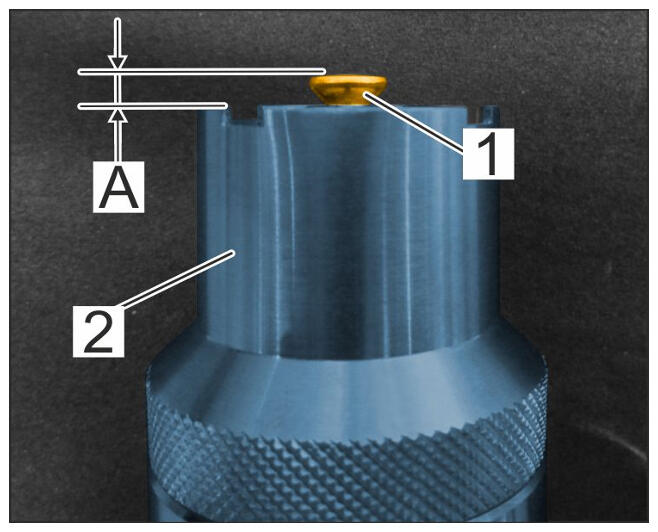

- Fit stud holder with weld stud into the welding gun. Note bolt projection -1-
with respect to the gas nozzle -2-
of > Length 2 mm
.
Supporting weld stud in gas pipe

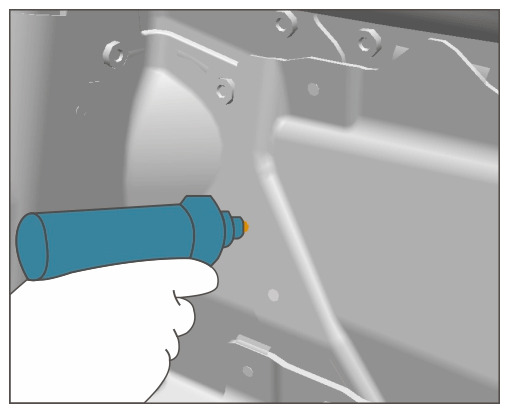

- Weld the weld stud onto the workpiece.
Welding on weld stud
- 4.1 Check welding parameters.
- 4.2 When using aluminium studs, remove the oxide coating on the weld stud by sanding it down.
- 4.3 Position welding gun straight onto the workpiece and check that the welding gun attachment is seated evenly and securely.
- 4.4 Start welding by pressing the trigger.
- 4.5 Wait at least 2 seconds to allow the molten weld pool to cool down and set.
Information
After welding, pull the welding gun straight off the welding element to avoid damaging the stud holder and stud.
