Technical Values - Plenum Panel, A-Strut

TIGHTENING TORQUE SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance
Screw securing upper part of plenum panel at the centre to A-strut	Item 1	Tightening torque	8 Nm ((6 ftlb.)	+/- 15 %

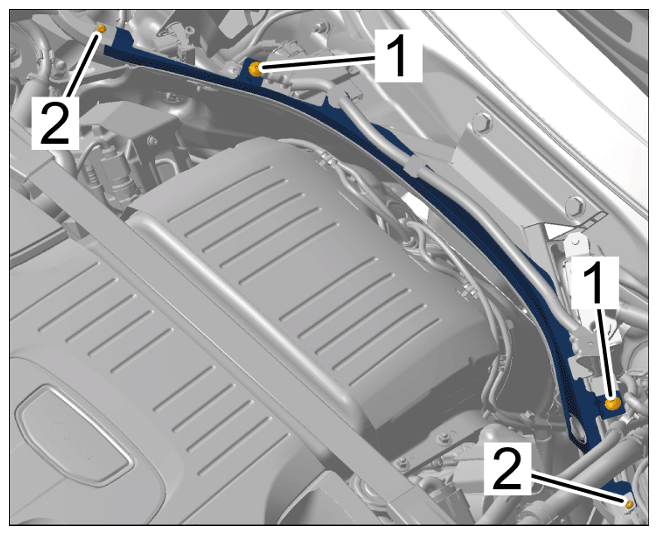

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to centre plenum panel	Item 2	Tightening torque	4 Nm ((3 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to spring strut mount	Item 7	Tightening torque	8 Nm ((6 ftlb.)	+/- 15 %

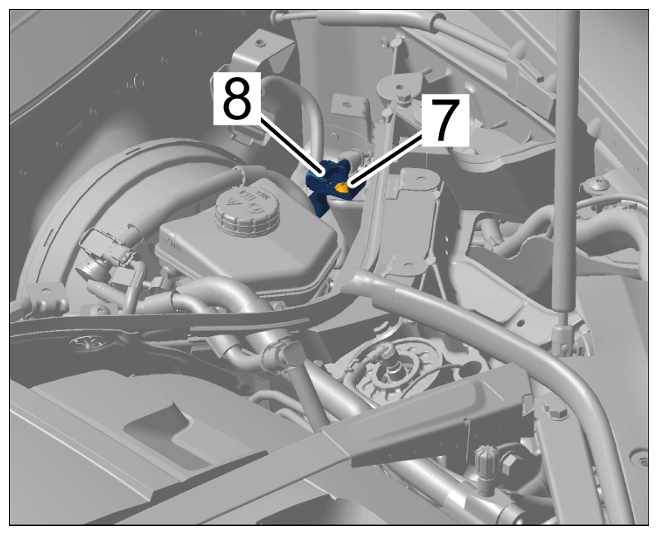

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side plenum panel to spring strut mount
Nut securing cross panel to firewall	Item 1	Tightening torque	3.5 Nm ((2.5 ftlb.)	+/- 10 %

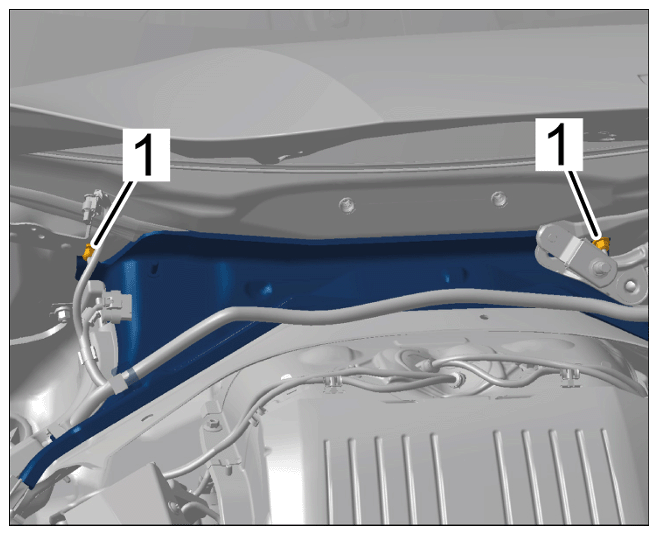

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing cross panel to firewall
