Technical Values - Front Lid Hinge

TIGHTENING TORQUE SPECIFICATIONS

Location	Description	Type	Basic value

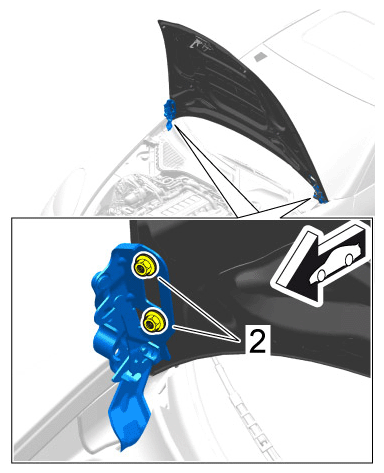

Nuts securing hinge to front cover	item 2	Tightening torque	20 Nm ((15 ftlb.) (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing hinge to front lid

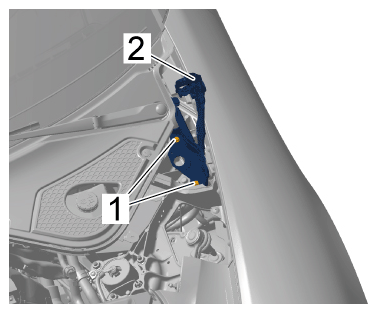

Screws securing hinge bracket to body	item 1	Tightening torque	23 Nm ((17 ftlb.) (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing hinge bracket to body
