Cavity Preservation

Information

• Apply standard cavity preservation as shown in the following illustrations.
• Also apply cavity preservation in the repair joint areas.
• Do not apply cavity preservation until you have completed the required painting and assembly work.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

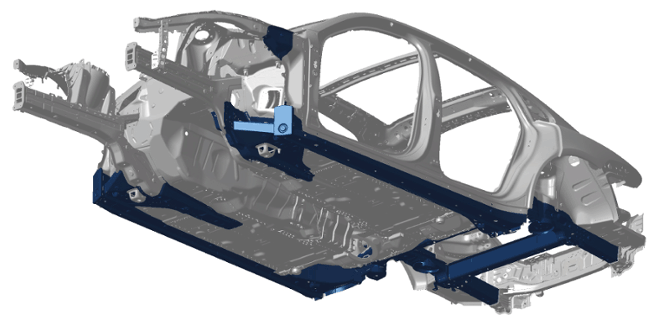

Overview of cavity preservation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

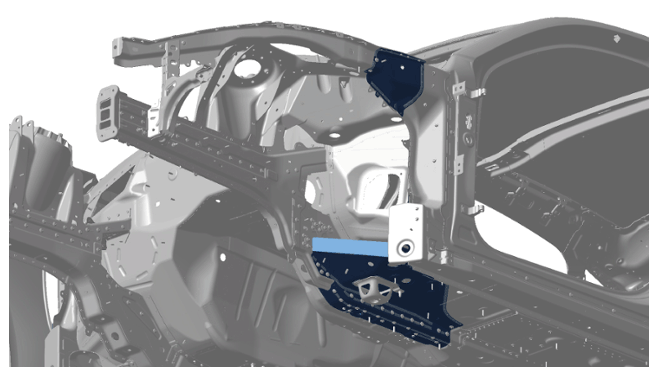

Body front section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

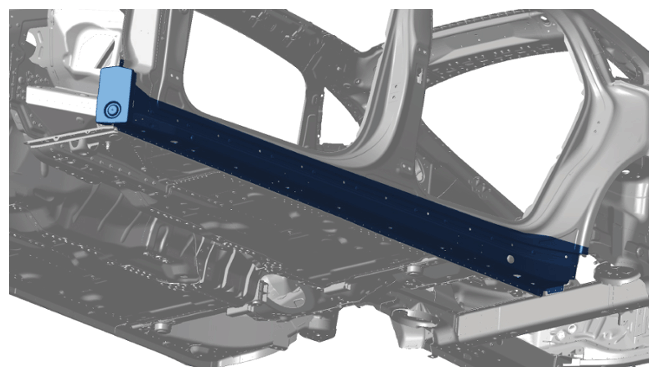

Lower side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

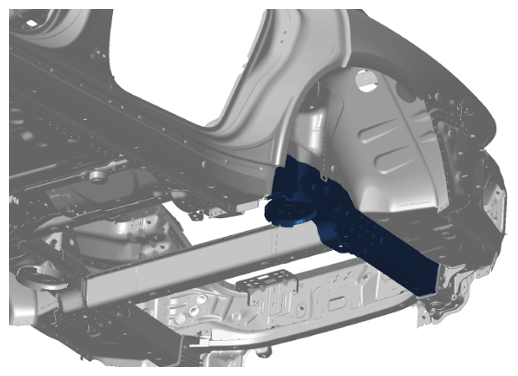

Rear side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

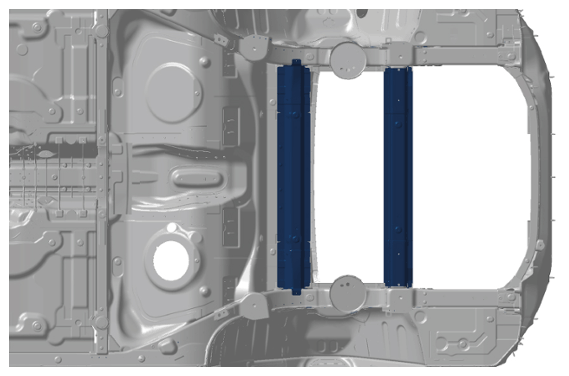

Rear cross member
