Gap Dimensions Of Front Lid
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

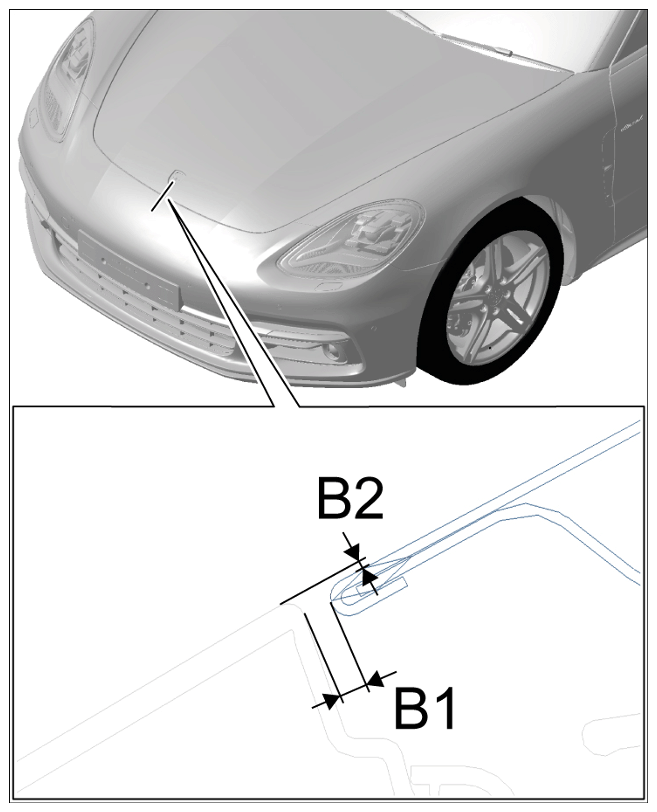

| Front lid to front apron (B1) | Gap dimension | 3.2 mm | + 0.8 mm - 0.6 mm |
|
|
Gap dimension |
||||
| Front lid to front apron (B2) | Offset | Gap dimension | - 1 mm - 0.3 mm |
+/- 0.5 mm |
|
Gap dimension |
||||

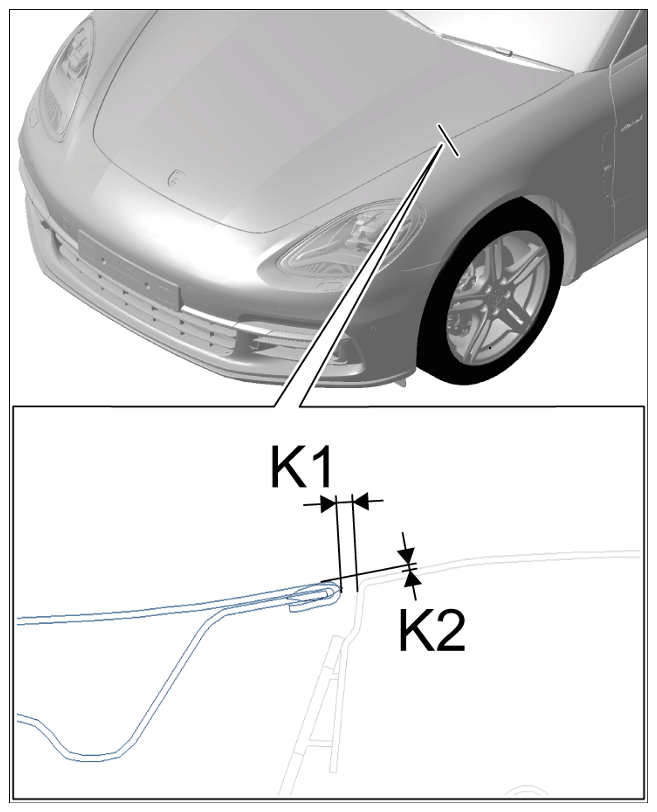

| Front lid to wing (K1) | Gap dimension | 3 mm | +/- 0.7 mm | |
|
Gap dimension |
||||
| Front lid to wing (K2) | Offset | Gap dimension | 0 mm | +/- 0.5 mm |
|
Gap dimension |
||||
