Gap Dimensions For Sliding-Roof Panel
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

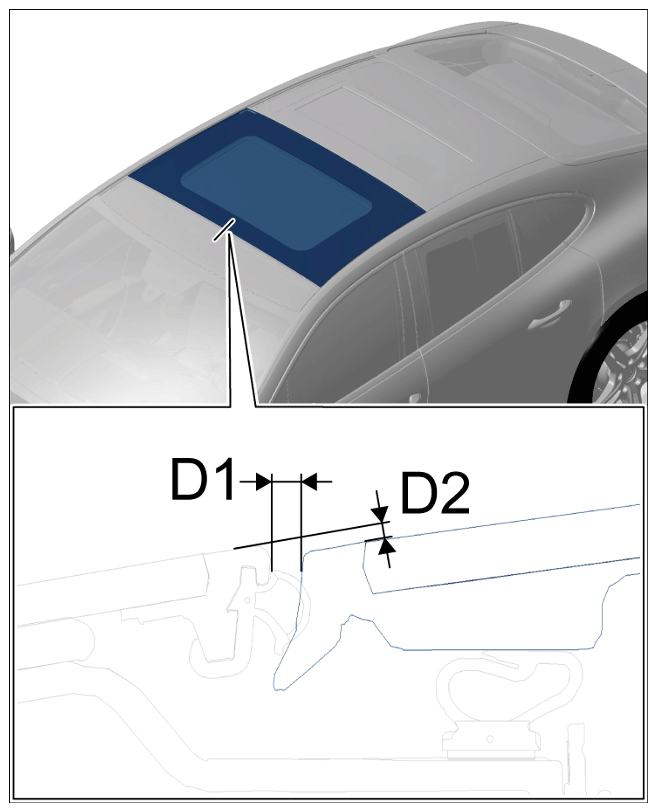

| Front roof to sliding-roof panel (D1) | Gap dimension | 3 mm | +/- 0.9 mm | |
|
Gap dimension |
||||
| Front roof to sliding-roof panel (D2) | Offset | Gap dimension | 1.2 mm | +/- 0.9 mm |
|
Gap dimension |
||||

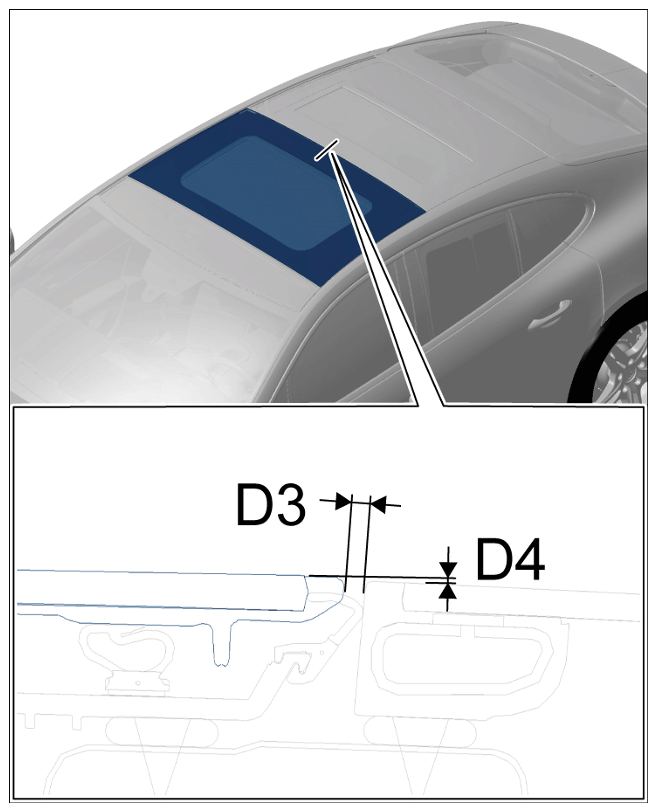

| Sliding-roof panel to rear lid (D3) | Gap dimension | 3 mm | +/- 0.9 mm | |
|
Gap dimension |
||||
| Sliding-roof panel to rear lid (D4) | Offset | Gap dimension | 0.5 mm | +/- 0.9 mm |
|
Gap dimension |
||||
