Removing Rear Wheel Housing Liner

1. Unscrew screw -3-  and nuts -2-  on rear wheel housing liner -1-  .
   Fig 1: Rear Wheel Housing Liner Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

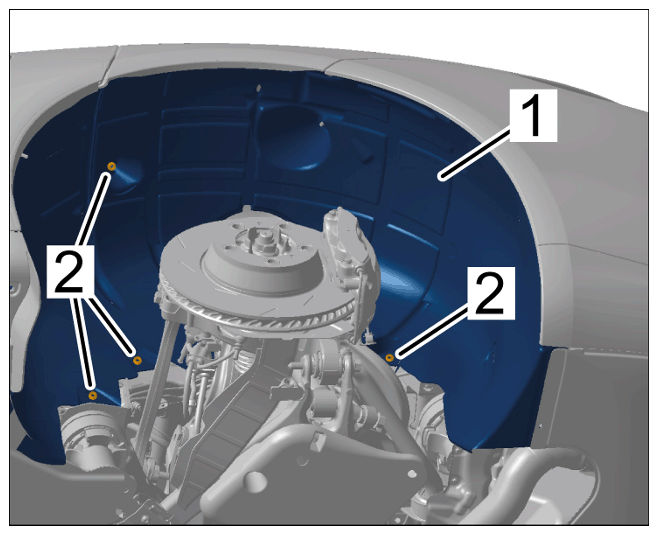

   Releasing rear wheel housing liner

2. Unscrew nuts -2-  on rear wheel housing liner -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing rear wheel housing liner

3. Remove rear wheel housing liner -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

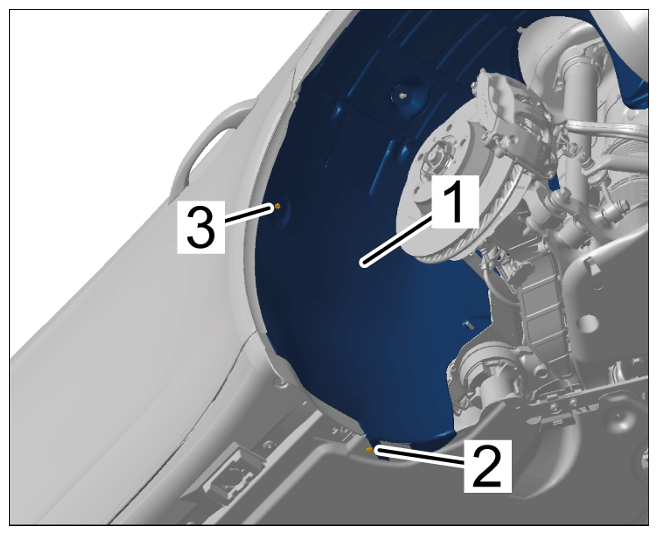

Removing rear wheel housing liner

1. 3.1 Unscrew screw -2-  and nut -3-  .
2. 3.2 Remove rear wheel housing liner -1-  .
