Removing (Outer) Rear Wheel Housing

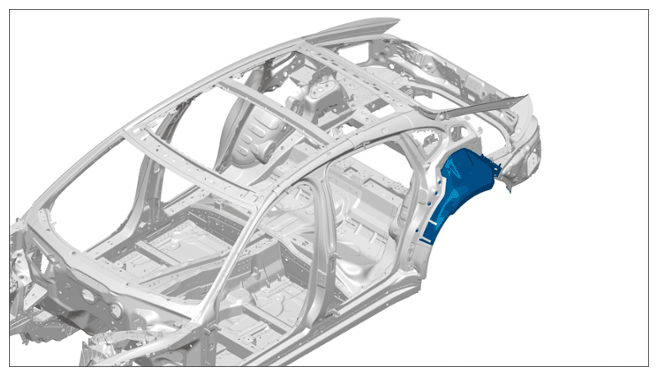

Fig 1: Wheel Housing Rear Component Location - Outer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of (outer) rear wheel housing

1. Roughly cut out (outer) rear wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

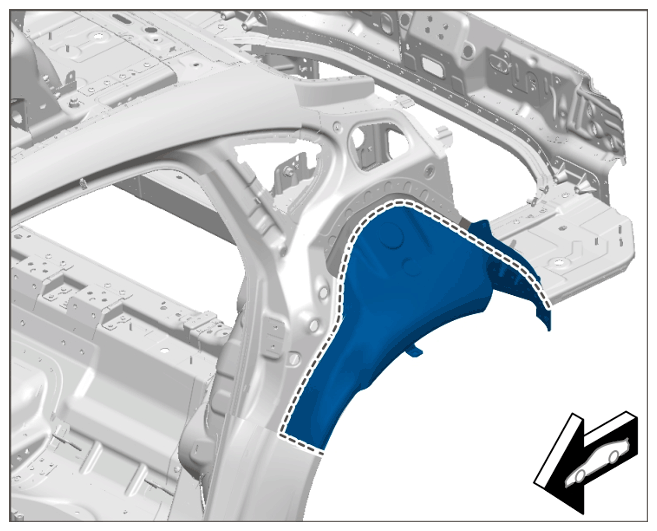

   Roughly cutting out rear wheel housing

2. Remove remaining piece at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

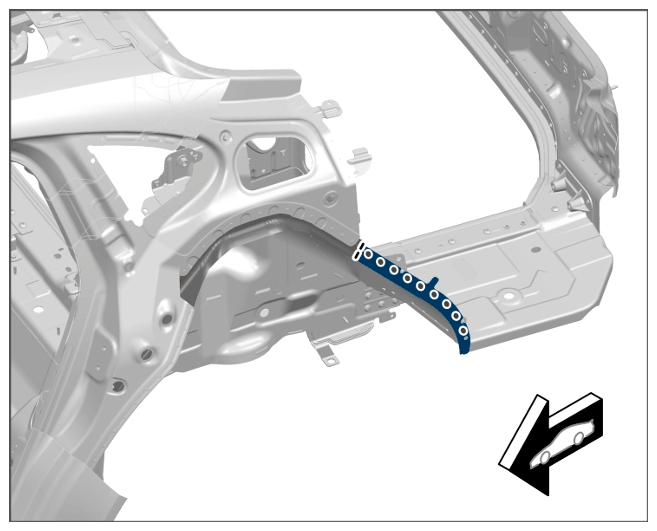

Removing remaining piece at the rear

1. 2.1 Drill through clinch points using a drill bit with a diameter of > Diameter 6.6 mm  .

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. 2.2 Make a cut at the marked position.
3. 2.3 Remove remaining sheetmetal strip.
