Removing Frame For Light (Saloon)

  1. Disconnect connection points.
    1. 1.1 Drill through clinch points. > Diameter 4 mm
    2. 1.2 Drill through clinch points -A-  . > Diameter 4 mm
    3. 1.3 Remove punch rivets -red dots-  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

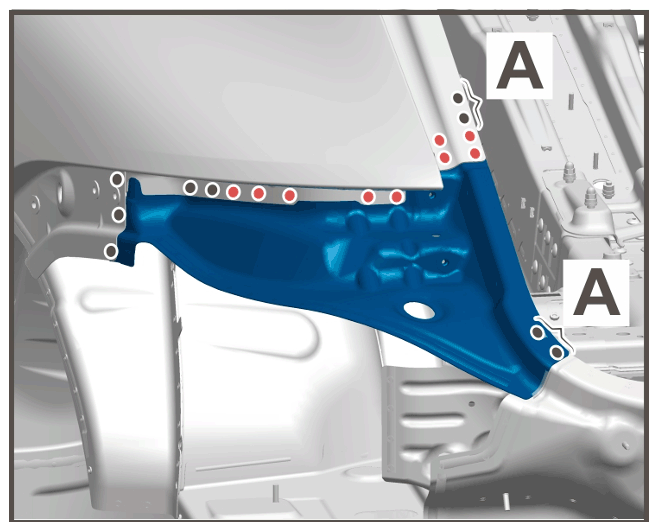

    G16162901Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection points

  2. Heat bonding surfaces. > V.A.G 1416 - Hot-Air Blower

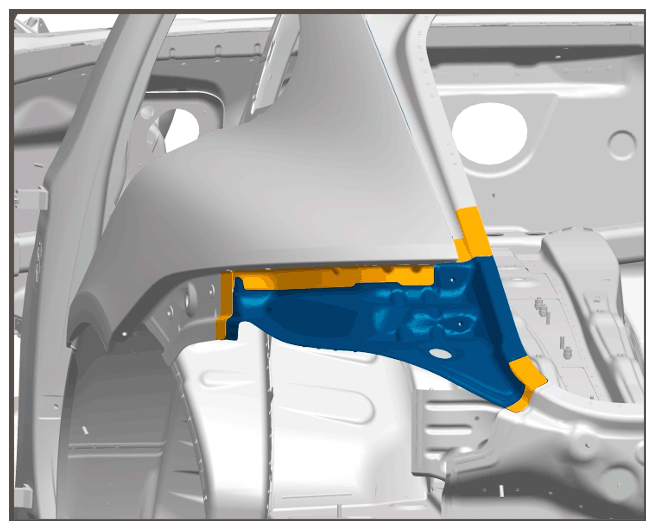

    G16162902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding surfaces

  3. Remove frame for light (Saloon).
