Installing Side Section-Lower Part

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install side section lower part and check that it fits perfectly.

   > 5X00IN GAP DIMENSIONS

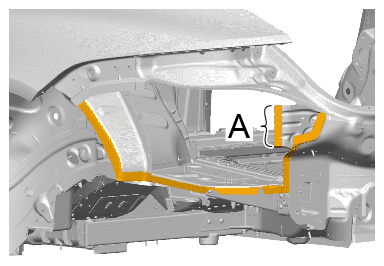

2. Only for Panamera Saloon

   Apply adhesive on the joint area -A-  of the body.

   > 5X00IN21 Working with body structural adhesive

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

3. Apply adhesive on the joint areas of the body.

   > 5X00IN21 Working with body structural adhesive

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

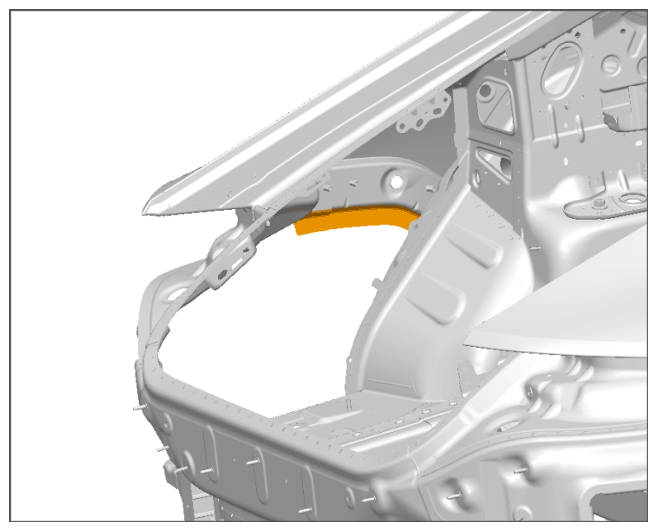

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

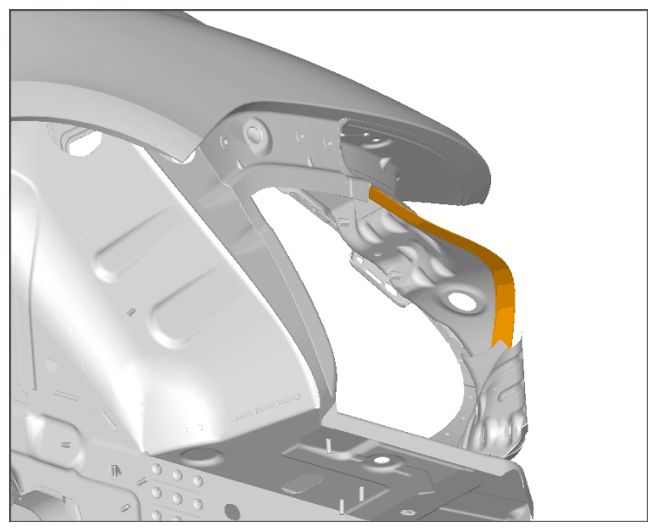

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

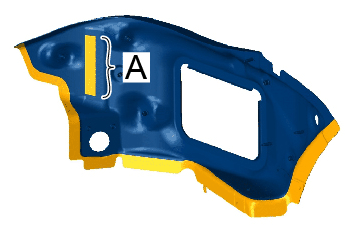

4. Only for Panamera Saloon

   Apply adhesive on the joint area -A-  of side section lower part.

   > 5X00IN21 Working with body structural adhesive

   1. 4.1 Apply adhesive evenly over the entire bonding surface -A-  . > Application depth 0.5 mm
   2. 4.2 Also apply a bead of adhesive all around the bonding surface -A-  . > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

5. Apply adhesive to the side section lower part.

   > 5X00IN21 Working with body structural adhesive

   1. 5.1 Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
   2. 5.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

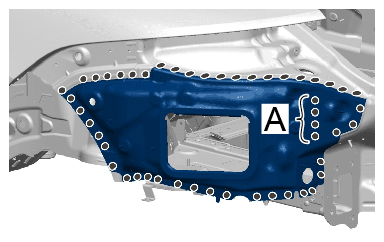

6. Only for Panamera Saloon

   Rivet in the side section lower part in area -A-  . > BLIND RIVETS 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side section lower part

7. Rivet in side section lower part. > BLIND RIVETS 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side section lower part
