Removing Closing Cross Member (Saloon)

Information

When replacing the closing cross member, the lower corner part must be removed on one side of the vehicle in order to move the replacement closing cross member into position from one side.

1. Roughly cut out closing cross member (Saloon).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

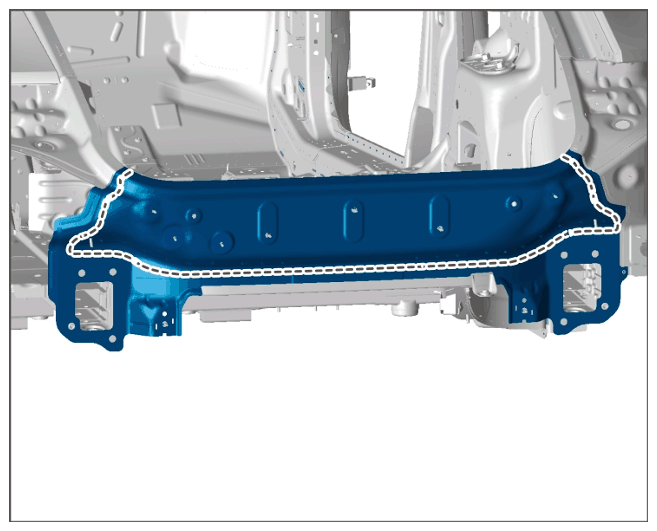

   Closing cross member (Saloon)

2. Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - compact booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

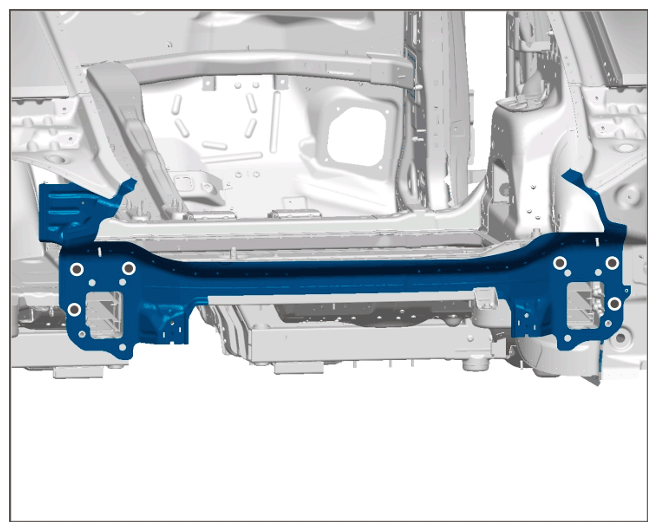

   Punch rivets

3. Drill through clinch points. > Diameter 6.6 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

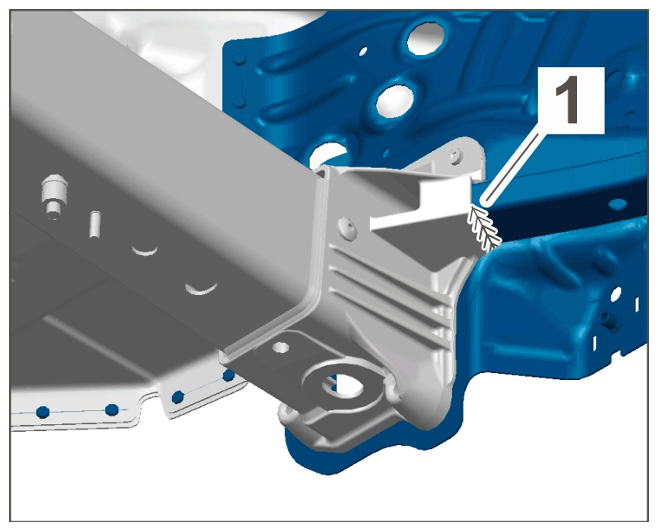

4. Cut welded seam -1-  on the closing cross member (Saloon).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welded seam

5. Heat bonding areas. > V.A.G 1416 - Hot-air blower

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

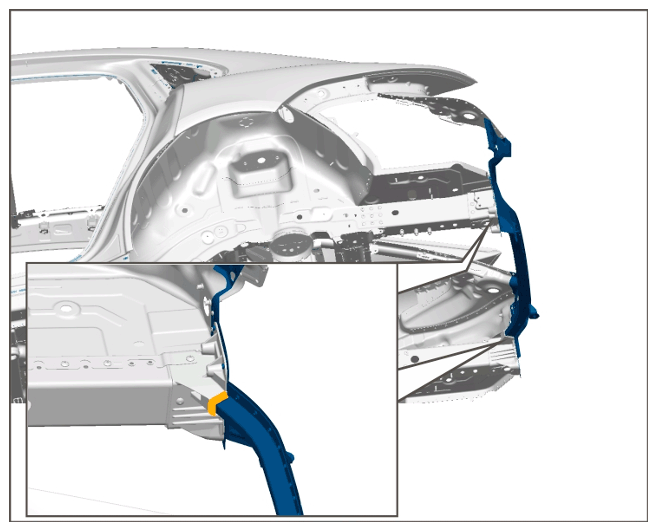

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   Carefully remove remaining pieces using a suitable tool. Connection points are needed for rivet joints.

6. Remove remaining sheetmetal pieces and closing cross member (Saloon).
