Preparing Connection Areas Of The Body For Installing The Closing Cross Member (Saloon)

1. De-burr connection points and prepare them for bonding.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
2. Prepare the marked areas for joining.

   > 5X00IN21 Working with body structural adhesive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

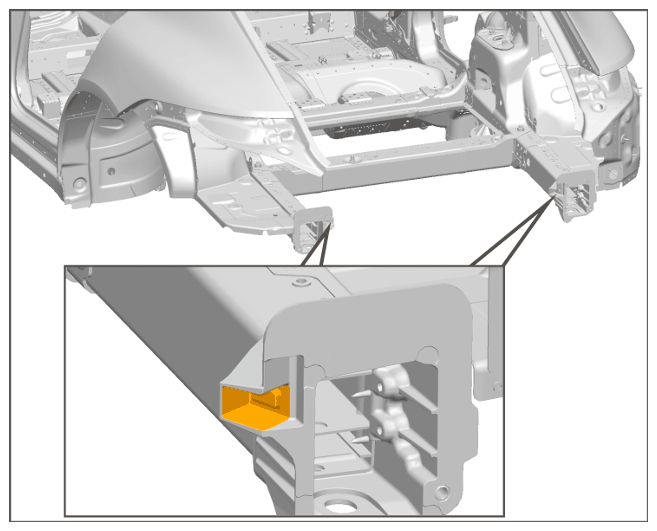

Connection areas of body
