Removing Cover For Centre Underbody

Information

• The number of screws, clips, electric plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. If not already removed:

   Remove tunnel cover on centre underbody. > Removing tunnel cover

2. Remove cover for centre underbody -6-  .

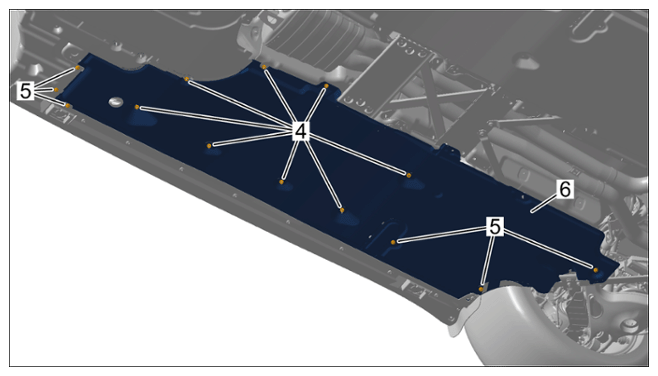

   Fig 1: Cover For Centre Underbody Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover for centre underbody

   1. 2.1 Unscrew nuts -4-  .
   2. 2.2 Unscrew and remove screws -5-  .
   3. 2.3 Remove cover for centre underbody -6-  .
