Removing Seat Cross Member

1. 1.1 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

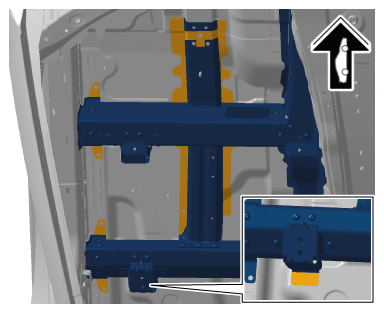

   Removing punch rivets

2. 1.2 Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

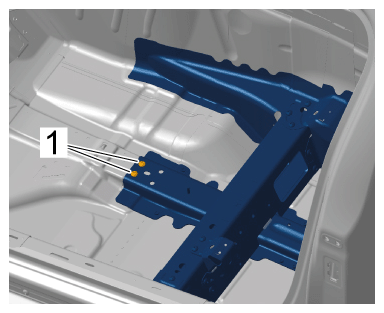

   Unscrewing screws

3. 1.3 Drill out spotwelds.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

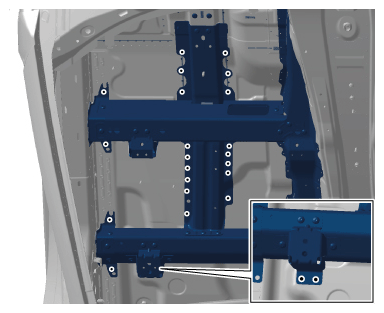

Drilling out spotwelds at the front

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drilling out spotwelds at the rear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

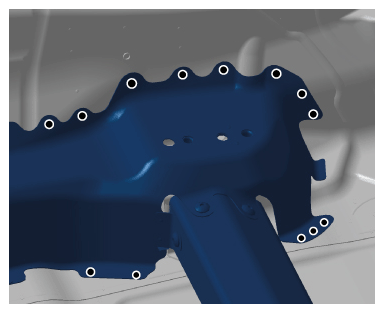

Cutting welded seams at the left

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

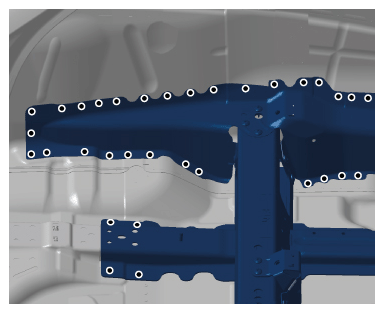

Cutting welded seams at the right

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

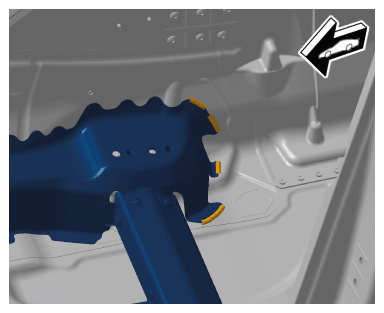

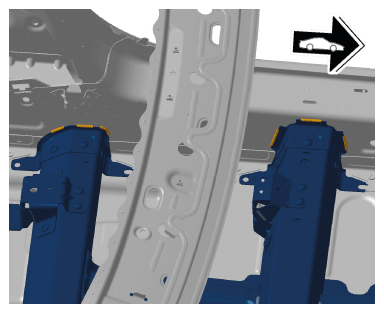

Heating up bonding areas
