Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...
Nuts securing heating/fresh-air unit to dashboard bracket	Item 5	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing heating/fresh-air unit to dashboard bracket
Screw securing centre support to dashboard bracket	Item 3	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing centre support to dashboard bracket
Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)	Item 6	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)
Screw on dashboard bracket (main bracket)	Item 7	Tightening torque	13 Nm ((9.5 ftlb.)

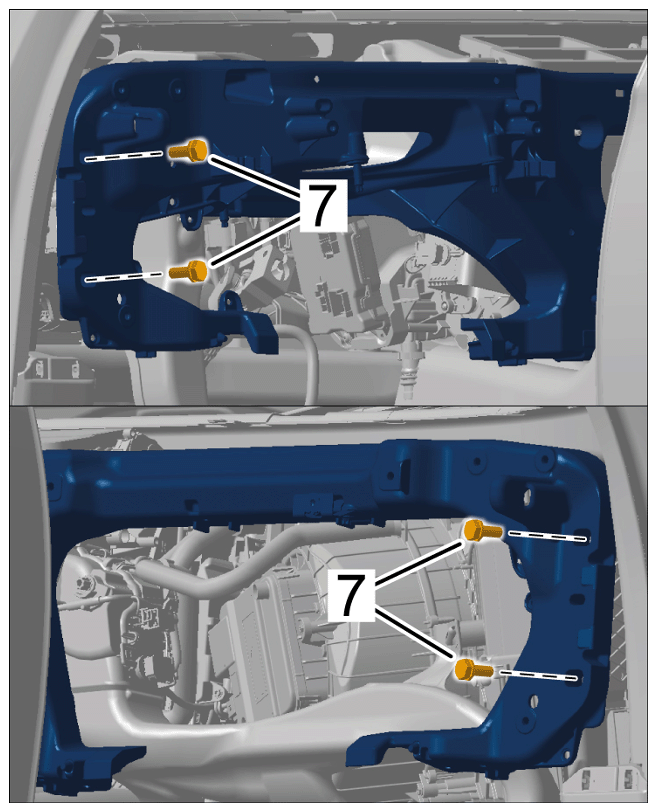

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on dashboard bracket (main bracket)
