Removing Dashboard Bracket (Front Bracket)

1. Fold over foam.
2. Remove dashboard bracket (front bracket) -2-  .

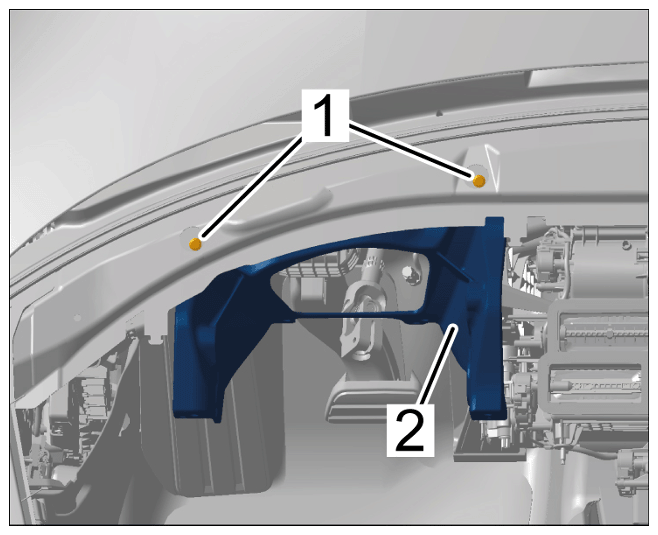

Fig 1: Dashboard Bracket Component Location (Front Bracket)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing dashboard bracket (front bracket)

1. 2.1 Unscrew and remove screws -1-  .
2. 2.2 Remove dashboard bracket (front bracket) -2-  .
