Technical Values
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Dimension D | Distance from bore hole | 100 mm | |||
| Dimension E | Distance from bore hole | 235 mm | |||

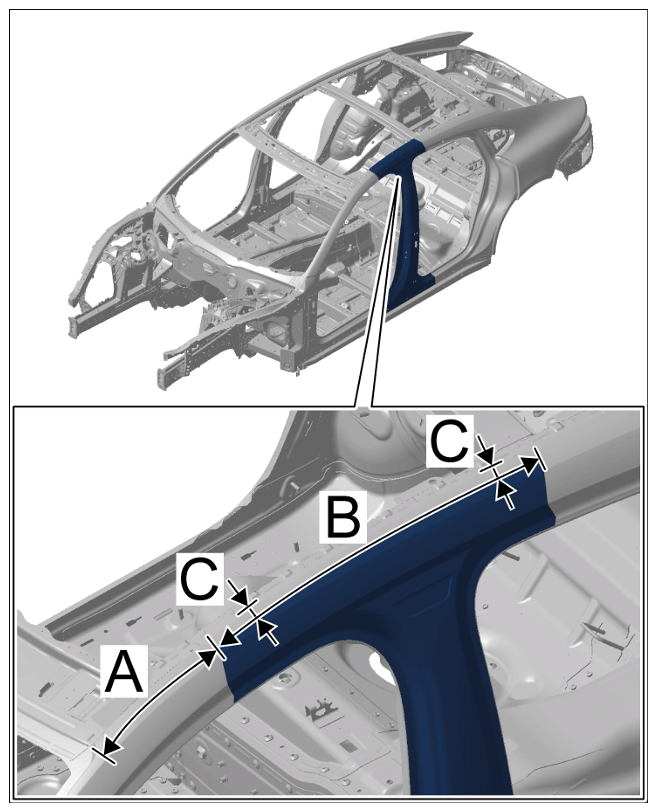

| Dimension W | Distance | 40 mm | |||
| Dimension A | Distance | 275 mm | |||
| Dimension B | Distance | 525 mm | |||
| Dimension C | Distance | 30 mm | |||
|
B-pillar |
|||||

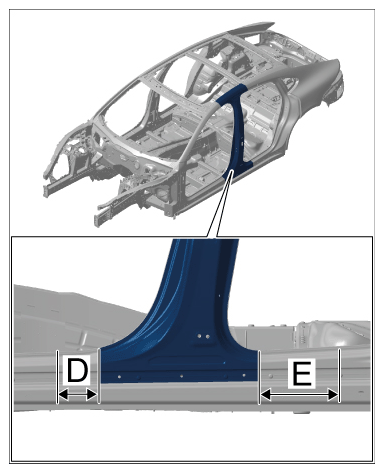

| Dimension D | From bore hole | Distance | 100 mm | ||
| Dimension E | From bore hole | Distance | 235 mm | ||
|
B-pillar |
|||||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Spread out evenly | Application depth | 0.5 mm | ||
| Applying adhesive | Application depth | 3 mm | |||
