Securing A-Pillar Insert

Prepare A-pillar insert for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

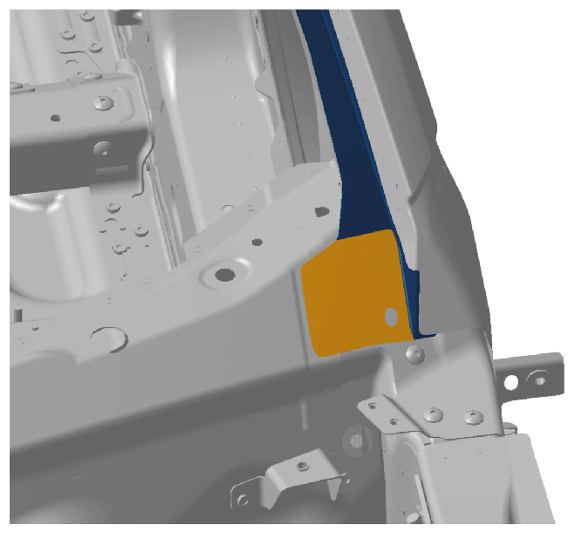

Bonding area
Spread adhesive evenly over the bonding surface. > Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

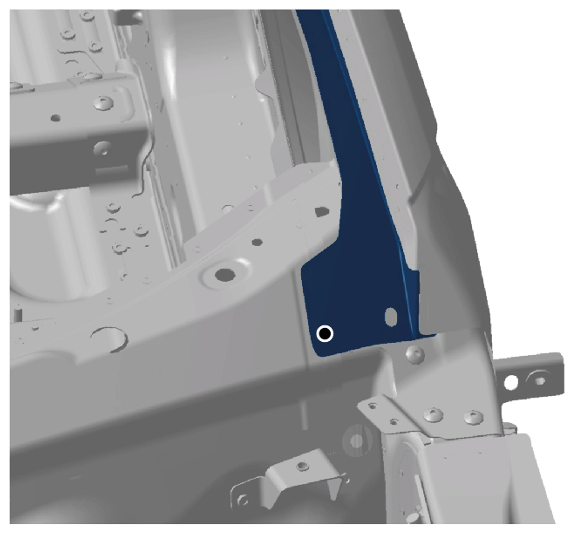

Rivet in A-pillar insert. > BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar insert
