Installing Lower Front Roof Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install lower front roof cross member and check that it fits perfectly.
2. Remove lower front roof cross member.
3. Apply adhesive evenly on the joint area of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

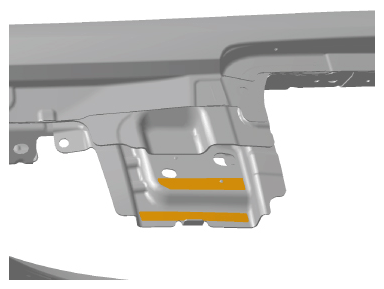

   Applying adhesive on lower front roof cross member

4. Apply adhesive evenly on the front roof cross member -1-  at the bottom.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

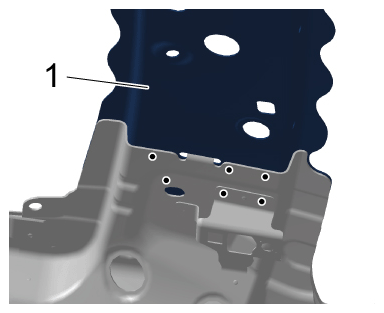

   Preparing lower front roof cross member for resistance spot-welding, bonding and riveting

   1. 4.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
5. Install lower front roof cross member -1-  .
   1. 5.1 Rivet in lower front roof cross member -1-  using > BLIND RIVETS 999.190.229.01  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Riveting in lower front roof cross member

   2. 5.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
   3. 5.3 Resistance spot-weld lower front roof cross member -A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

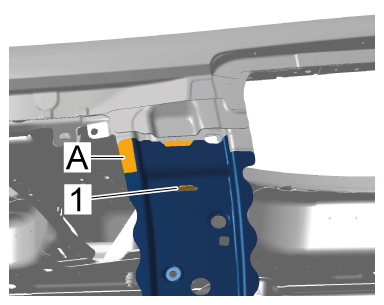

      Installing lower front roof cross member

   4. 5.4 Apply a full weld on lower front roof cross member.
   5. 5.5 Bend up sheet-metal bracket -1-  .
